Description:
Horsepower & Torque: 540 Horsepower / 535 FT. LBS. Torque
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons
Block:
Kezar’s Perfomance High Strength Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.125″ Bore
1-Piece Rear Main Seal
Mech Fuel Pump Provision: Yes
Passenger Side Dipstick
Drilled and Tapped for Clutch Linkage
Rotating Assembly:
New BluePrint Forged Crankshaft
4.000″ Stroke
Forged 6.000″ Connecting Rods
Forged Pistons
Internally Balanced Front and Rear
Cylinder Heads:
BluePrint Aluminum Cylinder Heads – HP8103
64cc Chamber
2.08″ Intake / 1.60″ Exhaust Valves
220cc Intake / 67cc Exhaust Runners
Cam Specs:
Cam Type: Roller
.577 Intake / .577 Exhaust Lift
240 Intake / 248 Exhaust Duration
@ .050-112 Degree Lobe Separation
Ignition Timing:
Initial Timing 10-16° and Total Timing 32-34°
Also Includes:
Holley 850cfm Double Pumper Carburetor w/ Manual Choke
Polished Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
Electric Fuel Pump
Satin Aluminum Intake Manifold
Valve Covers
Oil Pan
Timing Cover
Spark Plugs and Wires
Thermostat and Thermostat Housing

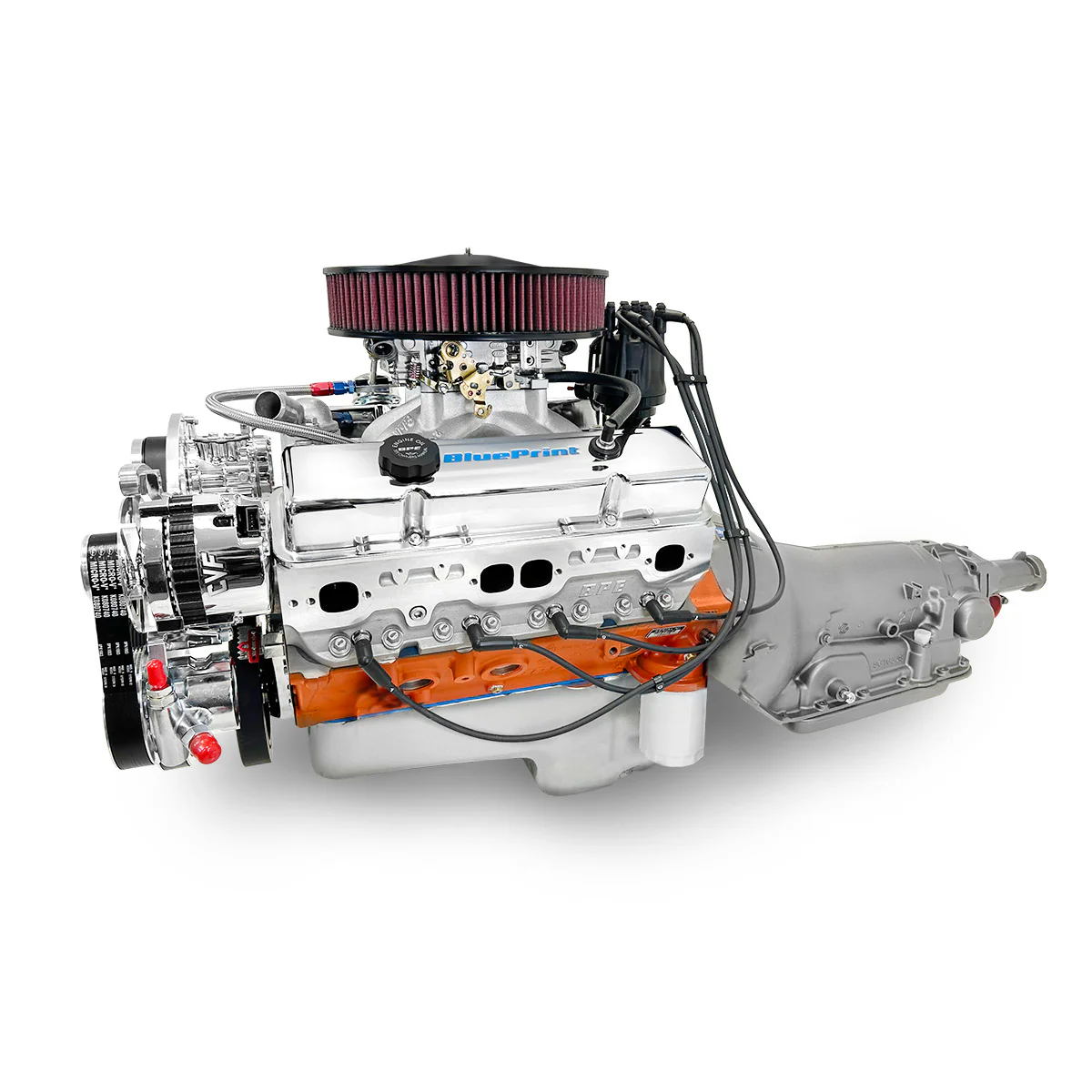

Assembled with Complete 700r4 Automatic Transmission Package:
700R4 Complete Package
2200-2400 Stall Torque Converter
Flex Plate
Starter
