Description

Description:
Horsepower & Torque: 500 Horsepower / 500 FT. LBS. Torque
Compression Ratio: 10.3:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons
Block:
Kezar’s Perfomance High Strength Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.125″ Bore
1-Piece Rear Main Seal
Mech Fuel Pump Provision: Yes
Passenger Side Dipstick
Drilled and Tapped for Clutch Linkage
Rotating Assembly:
New BluePrint Forged Crankshaft
3.750″ Stroke
Forged I Beam 5.700″ Connecting Rods w/ 150,000 PSI Bolts
Forged Pistons
Internally Balanced Front – Externally Balanced Rear
Cylinder Heads:
BluePrint Aluminum Cylinder Heads – HP8103
64cc Chamber
2.08″ Intake / 1.60″ Exhaust Valves
220cc Intake / 67cc Exhaust Runners
Cam Specs:
Cam Type: Roller
.555 Intake / .576 Exhaust Lift
236 Intake / 242 Exhaust Duration
@ .050-110 Degree Lobe Separation
Ignition Timing:
10-16° Initial and Total Timing 32-34° at 3500 RPM
Also Includes:
Holley 850cfm Double Pumper Carburetor w/ Manual Choke
Polished Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
Intake Manifold Dual Plane, Satin Aluminum
Thermostat and Thermostat Housing
Valve Covers
Oil Pan
Timing Cover
Fuel Pump
Spark Plugs and Wires
Oil Filter
Plug Wire Separators

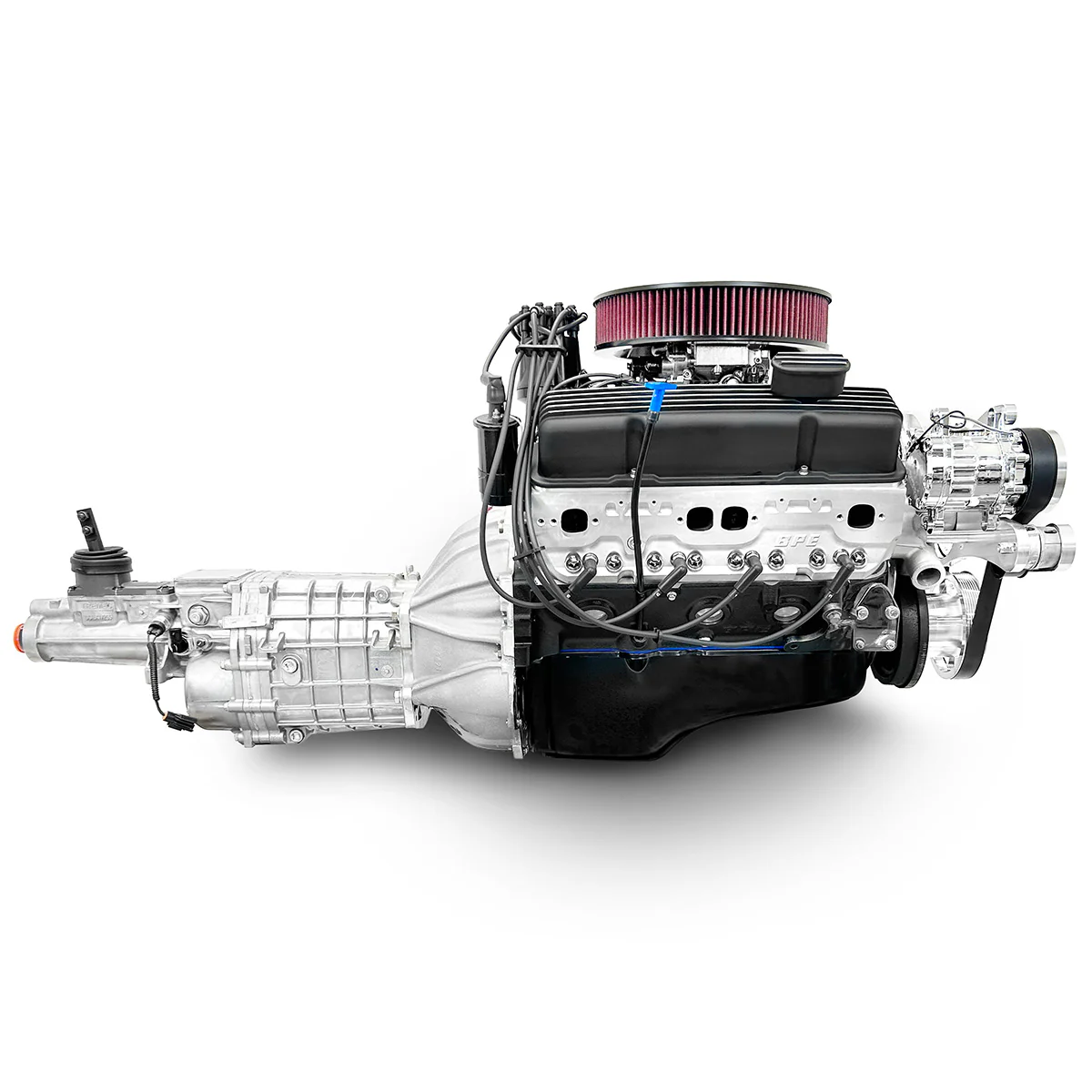

Assembled with Complete TKX Transmission Package:
Mcleod Super Street Pro Single Disk Clutch
Hydraulic Throw Out Bearing
Bell Housing
Billet Flywheel
Starter
First Gear Ratio: 2.87:1
Second Gear Ratio: 1.89:1
Third Gear Ratio: 1.28:1
Fourth Gear Ratio: 1.00:1
Fifth Gear Ratio: 0.81:1
