Description

Description:
Horsepower & Torque: 800 Horsepower / 780 ft. lbs. Torque
Compression Ratio: 11:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons
Block:

Kezar’s Perfomance High Strength Cast Iron Block
Increased Deck Thickness and Strength Webbing
Extended Cylinder Skirt
Priority Main Oiling
4.070″ Bore
6-Bolt Main
1-Piece Rear Main Seal
Improved Water Jacket Design
Utilizes OEM LS3 Front and Rear Covers
Rotating Assembly:
New Forged Crankshaft
4.125″ Stroke
Forged 6.125″ Connecting Rods
Forged Pistons
Internally Balanced
Cylinder Heads:
BluePrint Aluminum Cylinder Heads – PS8015
70cc Chamber
2.165″ Intake / 1.600″ Exhaust Valves
259cc Intake / 102cc Exhaust Runners
Cam Specs:
Hydraulic Roller
.624 Intake / .624 Exhaust Lift
239 Intake / 255 Exhaust Duration
@.050-114 Degree Lobe Separation
Ignition Timing:
ECM Supplied with Calibration
Also Includes:
Holley Terminator X Max – Gen IV Complete ECU/Harness EFI System

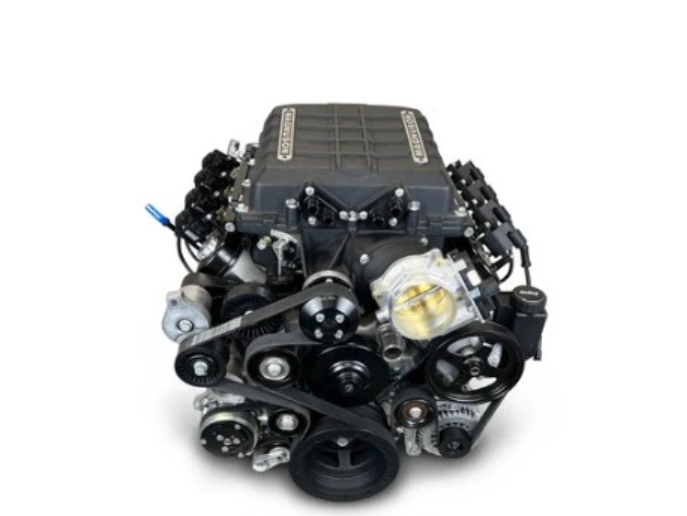

Magnuson TVS2650 Super Charger
Coil Packs
Valve Covers
Oil Pan
Water Pump
All Sensors Required for Engine to Run
Drive by Wire Throttle Body
Timing Cover
Spark Plugs & Wires
Harmonic Balancer
