Description

If you want the early look but are reluctant to use old non-energizing drum brakes, we have just what you need. Our 100% new self-energizing backing plate assemblies come complete with shoes, wheel cylinders, and hardware. Fits either the front or rear of 1937-48 Ford cars or 1937-47 Ford half-ton pickups with original style rear axle.

This brake assembly comes complete with our new iron 12″ x 2″ brake drums (910-65400) with 5 on 5-1/2″ bolt circle which are impossible to find elsewhere.

Also included is our Speedway 1928-1948 Ford Milled Forged Spindles which have been machined to accept our Bendix Style brake kits without the typical required modifications. These Speedway spindles are one-piece, forged design constructed of high strength 4140 steel, which makes them superior to original components. These spindles are modeled after the 37-41 round-back passenger car design and use 37-41 Ford king pins. These spindles fit Ford axles from 28-48 passenger car. They can be used with period-correct drum brakes or modern Speedway Motors disc brakes, but will not work with hubs from 28-36. Ford-style spindles are generally your best choice when using an original Ford axle or an aftermarket I-beam axle. These spindles are a reproduction version of the 1937-41 spindle. Ford used the same king pin dimensions and geometry on the 1928-48 axles, therefore you can use any 1937-48 Ford spindle on any 1928-48 car axle.

Be sure to include our spindle nut kit (910-616004), early ford hubs (91065450) and bearing kit (91065455) to complete installation.

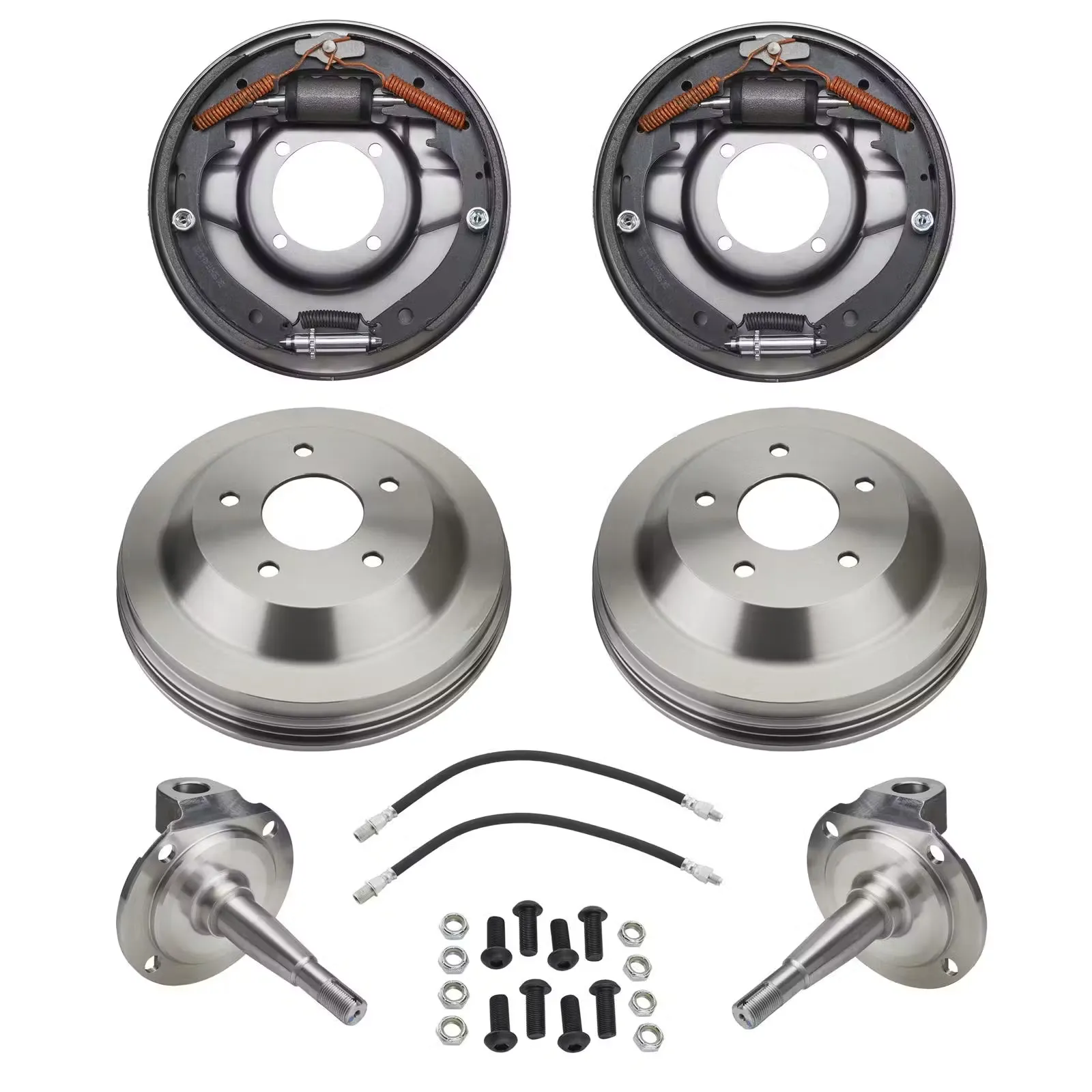

Kit includes:

• 916-32111 Speedway 1928-1948 Ford Milled Forged Spindles
• 910-65420 Bendix Style Brakes for 1937-48 Ford Spindles, 12 x 2 Inch
• 917-4900 Brake Hose for Early Ford Style Wheel Cylinders, 7/16 Inch Ends
• 702-4475-2 Bolt Kit for Ford Spindles/Steering Arms/Brake Brackets

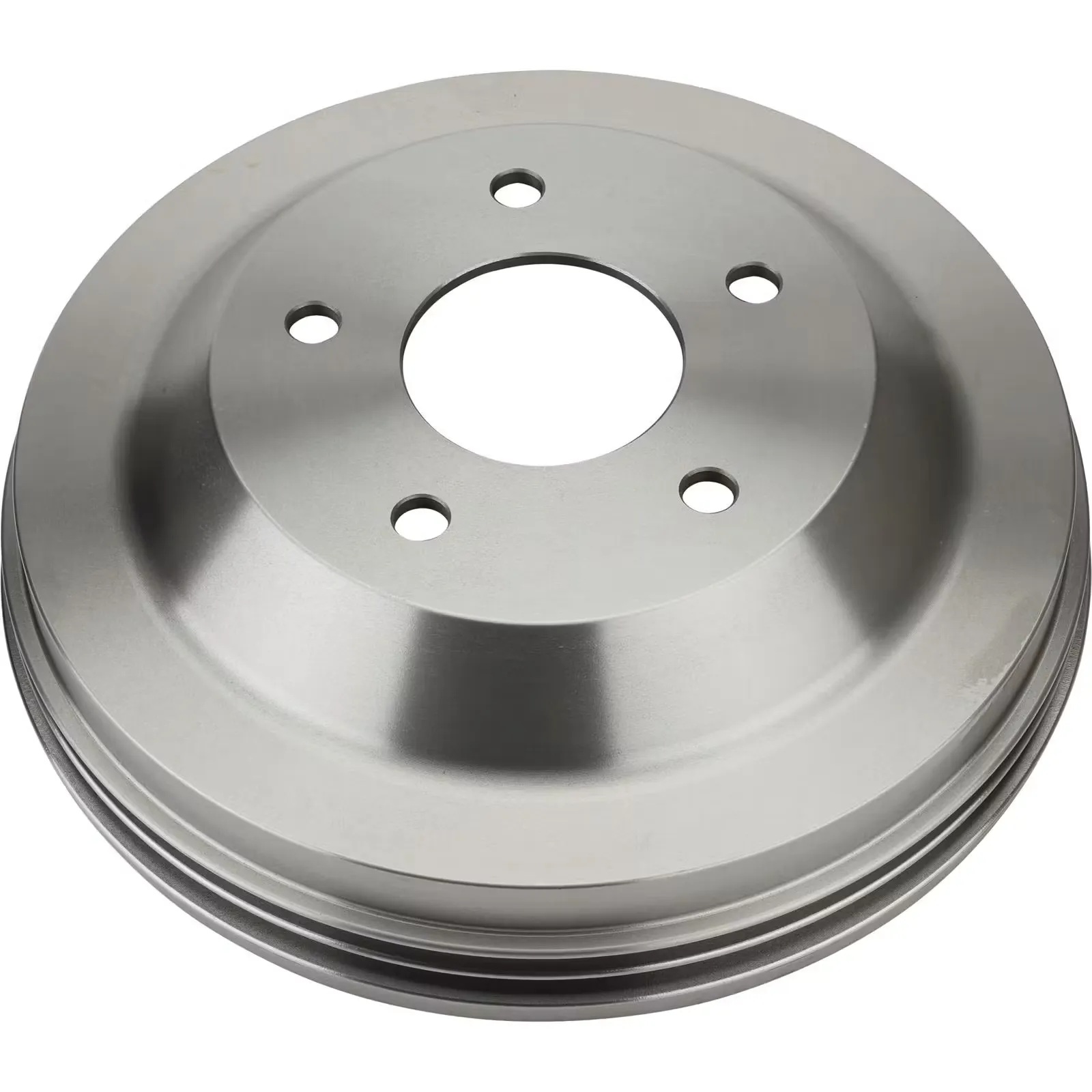

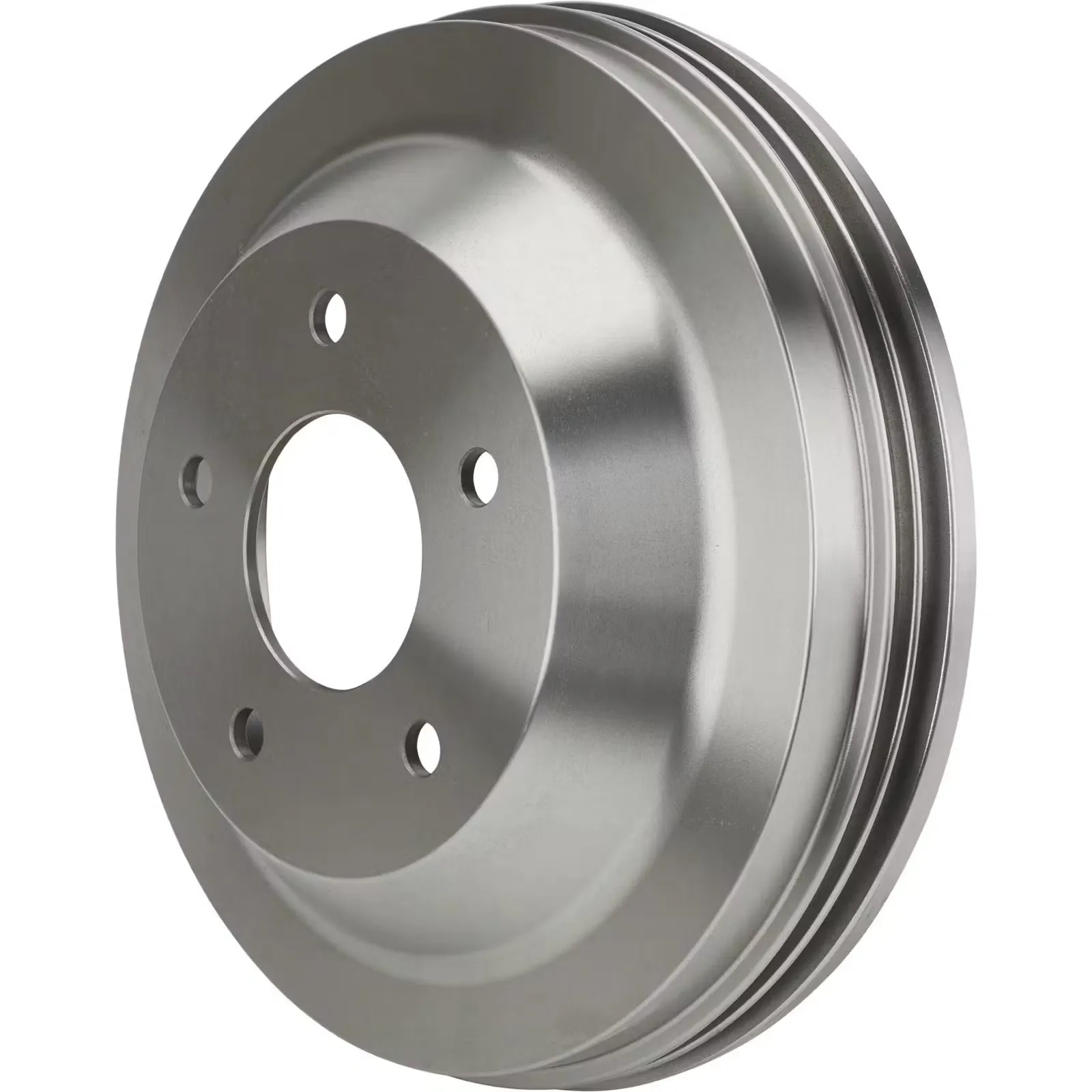

• 910-65400 12 x 2 Brake Drum for Bendix Style 1937-48 Ford Brakes



Additional Information:

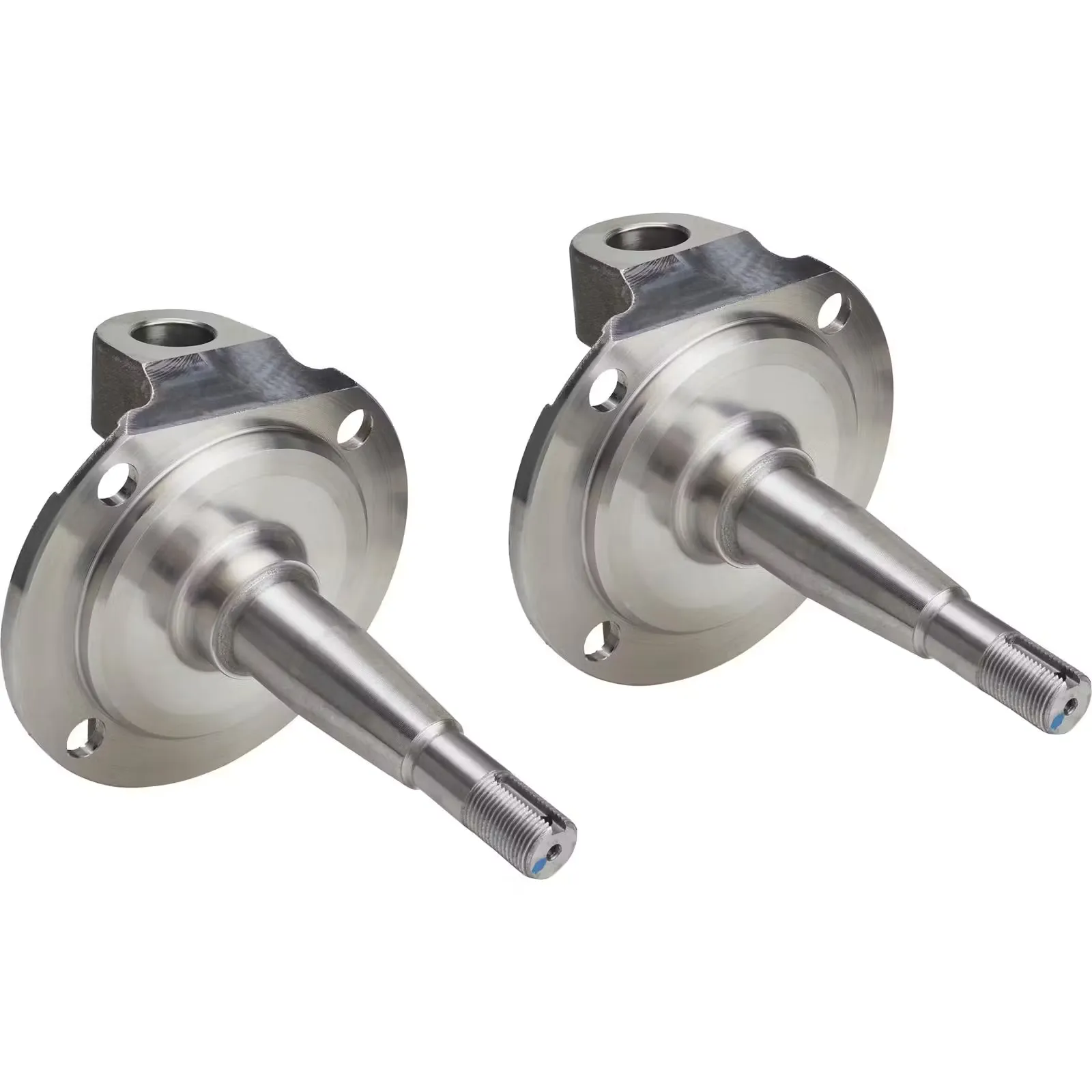

• 916-32111 Speedway 1928-1948 Ford Milled Forged Spindles
  • Constructed of high strength 4140 steel
  • Stock height
  • Modeled after 37-41 round-back passenger car design
  • Uses 1937-1941 king pin kit
  • For Ford axles 1928-1948 passenger car
  • King pins not included
  • Will not work with 1928-1936 Hubs
• 910-65420 Bendix Style Brakes for 1937-48 Ford Spindles, 12 x 2 Inch
  • Wheel cylinder inlet 7/16″-20 straight thread NOT 7/16″-20 IFF (correctly threaded hoses are included in kit)
  • Inlet fitting will require a sealing washer or O-ring style fitting
  • Bolt Pattern: 3-3/8″ center-to-center both horizontally and vertically
  • Our flat plate steering arms WILL NOT fit this backing plate
  • Includes backing plates, shoes, hardware, and wheel cylinders

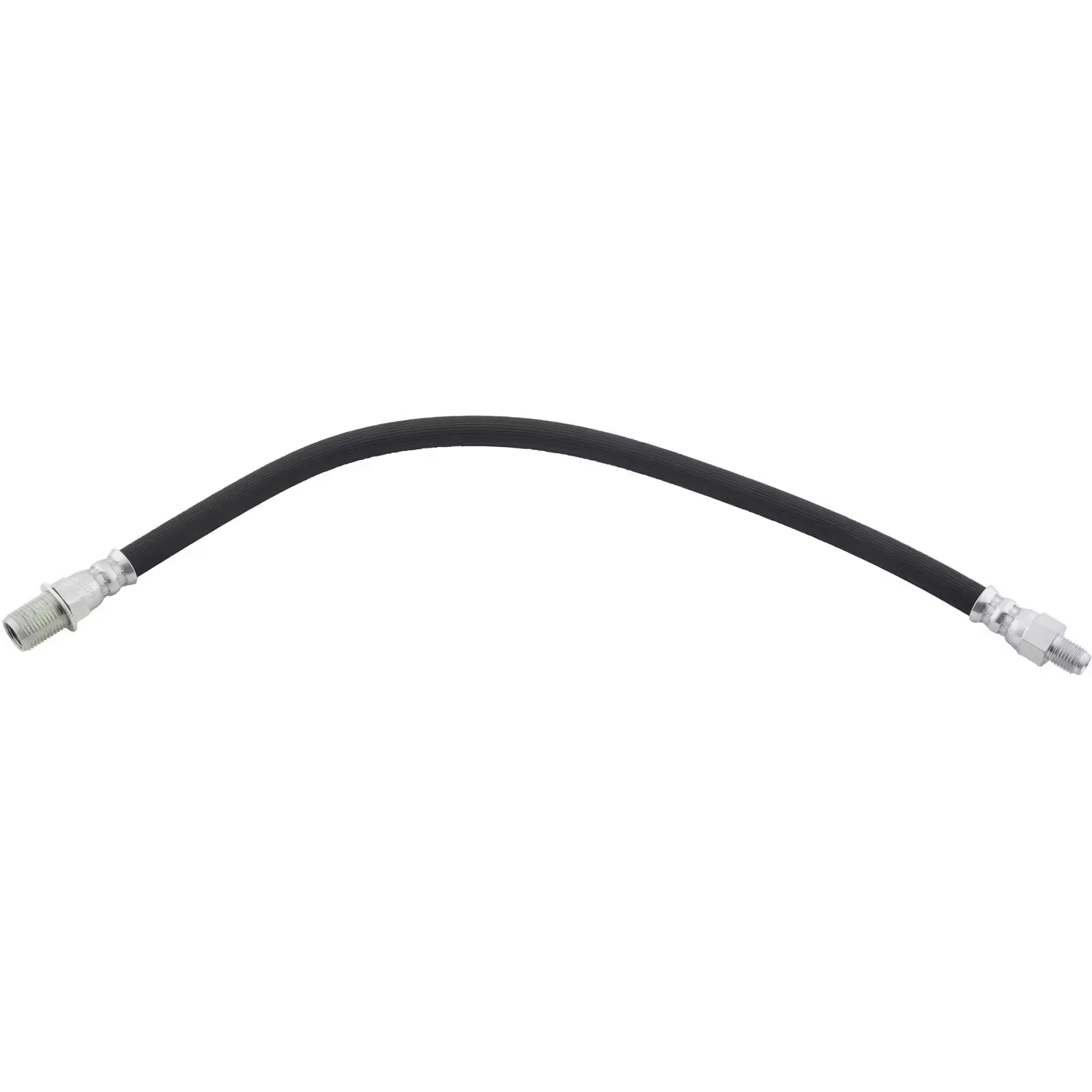

• 917-4900 Brake Hose for Early Ford Style Wheel Cylinders, 7/16 Inch Ends
  • Designed for use on early Ford style wheel cylinders
  • Constructed of strong rubber for a flexible yet durable fit
  • Crush washers NOT included
  • 7/16″-20 O-ring male thread for wheel cylinder end
  • 7/16″-24 IFF to accept a 1/4″ brake line
  • External 5/8″ threads on line to utilize a jam nut such as 175-0246 for brake line tab attachment
  • Use 910-3183-7/16 adapter fitting to utilize hose with 3/16″ brake line
  • 17 3/4″ long end to end

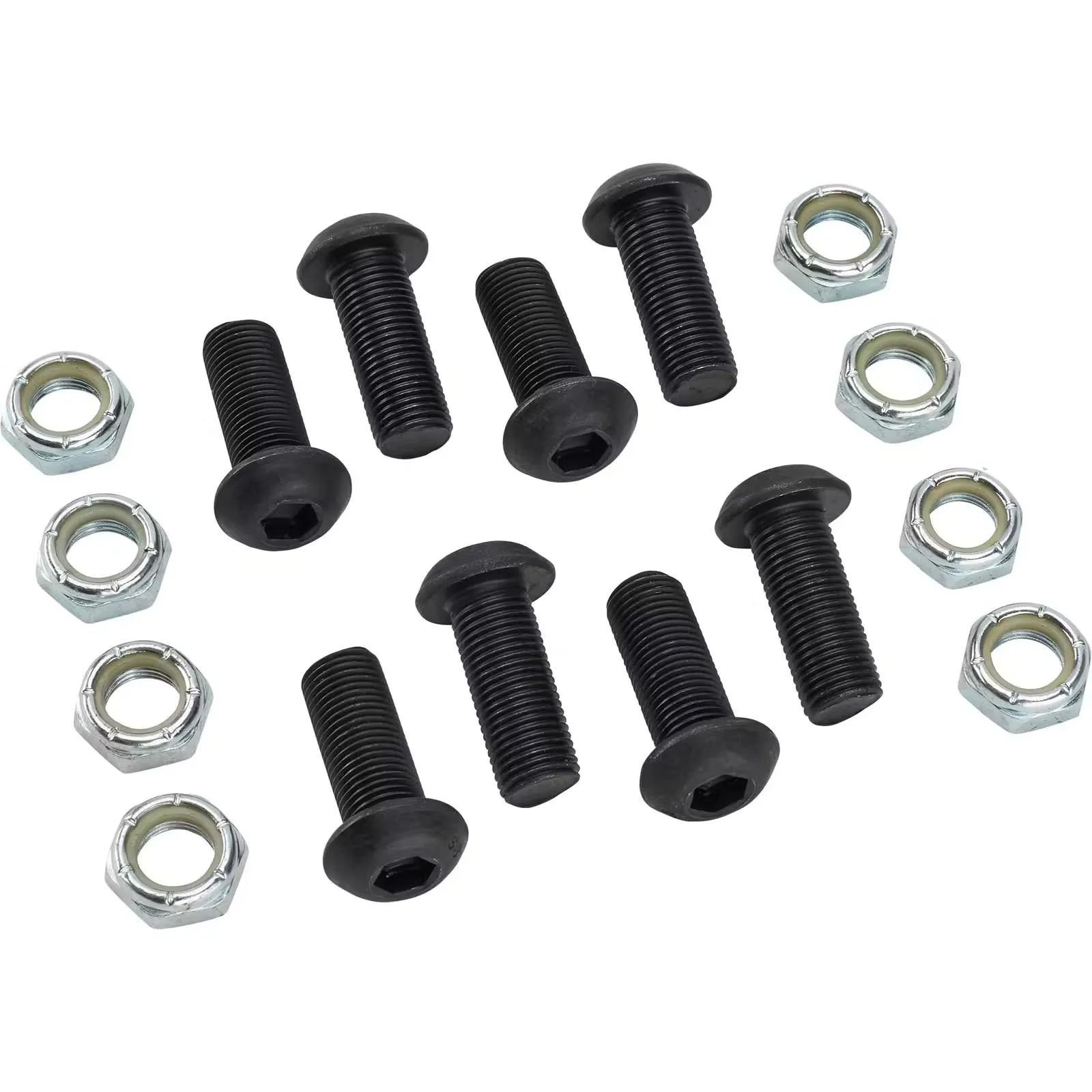

• 702-4475-2 Bolt Kit for Ford Spindles/Steering Arms/Brake Brackets
  • (8) 1/2″-20 x 1-1/4″ fine thread button head allen bolts
  • (8) Thin nylock nuts
  • (1) Instruction sheet
• 910-65400 12 x 2 Brake Drum for Bendix Style 1937-48 Ford Brakes
  • Friction surface goes all the way to the edge
  • Surface is chamfered but the shoe surface is to the edge
  • Hub I.D. is 3.25″
  • Mounting face is 7.88″
  • O.D. Drop from face is 1.40″

Additional Information:

• 916-32111 Speedway 1928-1948 Ford Milled Forged Spindles
  • Constructed of high strength 4140 steel
  • Stock height
  • Modeled after 37-41 round-back passenger car design
  • Uses 1937-1941 king pin kit
  • For Ford axles 1928-1948 passenger car
  • King pins not included
  • Will not work with 1928-1936 Hubs
• 910-65420 Bendix Style Brakes for 1937-48 Ford Spindles, 12 x 2 Inch
  • Wheel cylinder inlet 7/16″-20 straight thread NOT 7/16″-20 IFF (correctly threaded hoses are included in kit)
  • Inlet fitting will require a sealing washer or O-ring style fitting
  • Bolt Pattern: 3-3/8″ center-to-center both horizontally and vertically
  • Our flat plate steering arms WILL NOT fit this backing plate
  • Includes backing plates, shoes, hardware, and wheel cylinders
• 917-4900 Brake Hose for Early Ford Style Wheel Cylinders, 7/16 Inch Ends
  • Designed for use on early Ford style wheel cylinders
  • Constructed of strong rubber for a flexible yet durable fit
  • Crush washers NOT included
  • 7/16″-20 O-ring male thread for wheel cylinder end
  • 7/16″-24 IFF to accept a 1/4″ brake line
  • External 5/8″ threads on line to utilize a jam nut such as 175-0246 for brake line tab attachment
  • Use 910-3183-7/16 adapter fitting to utilize hose with 3/16″ brake line
  • 17 3/4″ long end to end
• 702-4475-2 Bolt Kit for Ford Spindles/Steering Arms/Brake Brackets
  • (8) 1/2″-20 x 1-1/4″ fine thread button head allen bolts
  • (8) Thin nylock nuts
  • (1) Instruction sheet
• 910-65400 12 x 2 Brake Drum for Bendix Style 1937-48 Ford Brakes
  • Friction surface goes all the way to the edge
  • Surface is chamfered but the shoe surface is to the edge
  • Hub I.D. is 3.25″
  • Mounting face is 7.88″
  • O.D. Drop from face is 1.40″

KEY SPECS
MFG. Part #	91604010
Brand	Speedway Motors
GENERAL
Sold in Quantity	Kit
