Description
Ranger R76ATR/LS43B Packages

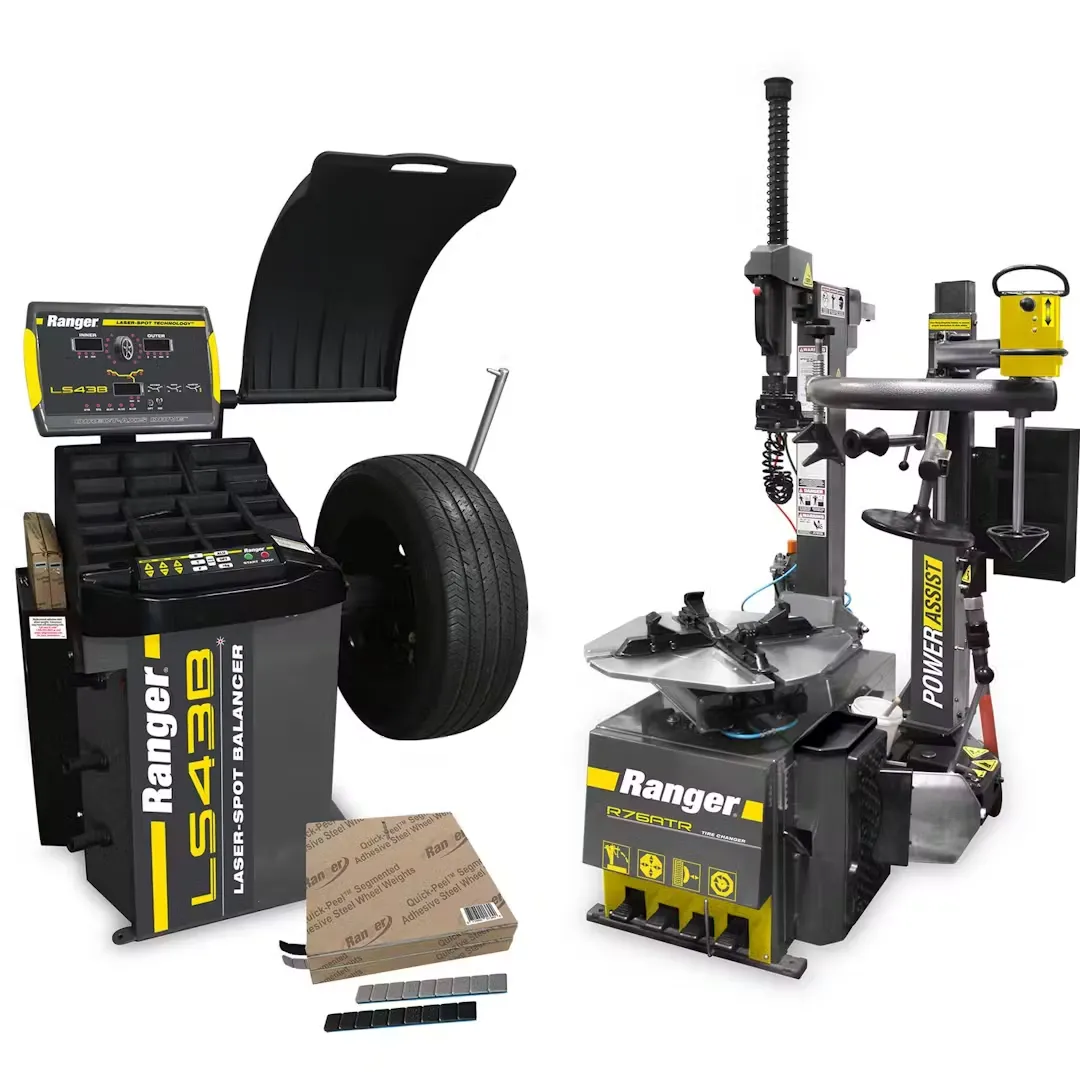

- Ranger offers all-in-one tire changer/balancing combos, like this economical R76ATR / LS43B package. Here’s what’s included:
- The Ranger R76ATR tire changer is a brilliant time-saver. Its tilt-back tower allows you to operate different tire-and-wheel combos without adjusting the duck head, and the swing-arm design with right-tower single assist ensure stiff sidewalls are never a problem. RimGuard clamps extend 10 in. to 30 in. for maximum versatility.
- The Ranger LS43B laser wheel balancer optimizes wheel weight placements with exclusive Laser-Spot technology. 3D Quick-Touch laser lines clearly indicate outboard and inboard weight placements for incredible balances within hundredths of an ounce. Wheels that are laser-balanced drive like new! Features a 36mm shaft.
- Combo Quick-Peel adhesive steel wheel weights are an effective and environmentally friendly way to quickly balance wheels using as little weight as possible. Rolls include: 1,400 pieces, 0.25 oz., 1/2 in. wide.
| KEY SPECS | |
|---|---|
| MFG. Part # | 5140123 |
| Brand | Ranger Products |
| GENERAL | |
| Sold in Quantity | Each |
| Motor | 3 HP (220 VAC 50-60 HZ) |
| Drive System Type | Electric / Hydraulic |
| Air Requirement | 110-175 PSI (8-12 BAR) |
| Wheel Clamping Method | 4 Clamps – Internal / External |
| Table Clamping System | Dual Pneumatic Cylinders |
| Bead Breaking System | Adjustable Pneumatic Blade |
| Tower Design | Tilt-Back |
| Power Assist Tower(s) | Single / Right-Side |
| Upper Bead Assist Roller | Single / Right-Side |
| Vertical Shaft/Tool Head | Single / Right-Side |
| Powerful Bead Seating System | TurboBlast™ |
| Inside Wheel Clamping Range | 8″ – 26″ (203 mm – 660 mm) |
| Outside Wheel Clamping Range | 10″ – 30″ (254 mm – 762 mm) |
| Maximum Rim Width | 15″ (381 mm) |
| Maximum Tire Diameter | 43″ (1,092 mm) |
