NOS 05501BNOS Dry Nitrous Plate System, Holley LS Hi Ram Intake

WAHAT AL ZAFRAN AUTO SPARE PARTS LLC  »  »  NOS 05501BNOS Dry Nitrous Plate System, Holley LS Hi Ram Intake
NOS 05501BNOS Dry Nitrous Plate System, Holley LS Hi Ram Intake
NOS 05501BNOS Dry Nitrous Plate System, Holley LS Hi Ram Intake - Image 2
NOS 05501BNOS Dry Nitrous Plate System, Holley LS Hi Ram Intake - Image 3
NOS 05501BNOS Dry Nitrous Plate System, Holley LS Hi Ram Intake - Image 4
NOS 05501BNOS Dry Nitrous Plate System, Holley LS Hi Ram Intake - Image 5

NOS 05501BNOS Dry Nitrous Plate System, Holley LS Hi Ram Intake

1,837.95 د.إ

Features:

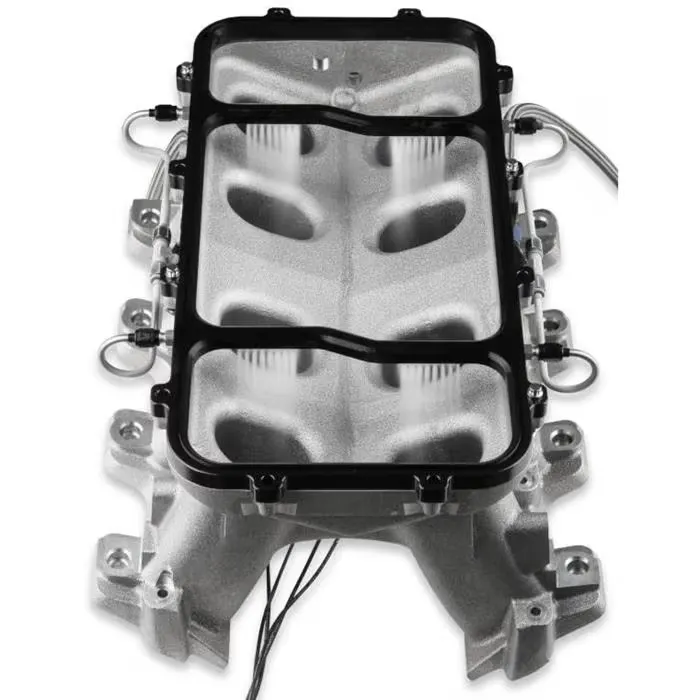

  • This dry single stage plate system sandwiches between the bottom base and top plate on Holley Hi-Ram intake manifolds
  • Designed specifically for optimum nitrous distribution on LS-based engines
  • Sprays nitrous directly into each cylinder runner for proper nitrous distribution
  • Plate features machined 0.103” passage that feeds (8) 0.040” openings per intake runner
  • Plate is made from billet 6061-T6 aluminum and has laser etched NOS logo
  • Plate is anodized black or clear for corrosion resistance and high quality appearance
  • System utilizes two NOS Pro-Race nitrous solenoids
  • Includes jetting for 50, 100, 150, 200, and 250 horsepower configurations
  • Supports up to 1000+ horsepower (jets purchased separately)
  • Includes Plate, Gasket, Hardware, Jet Holders, Solenoids, Brackets, Hose, Fittings, and Jetting for up to 250 horsepower

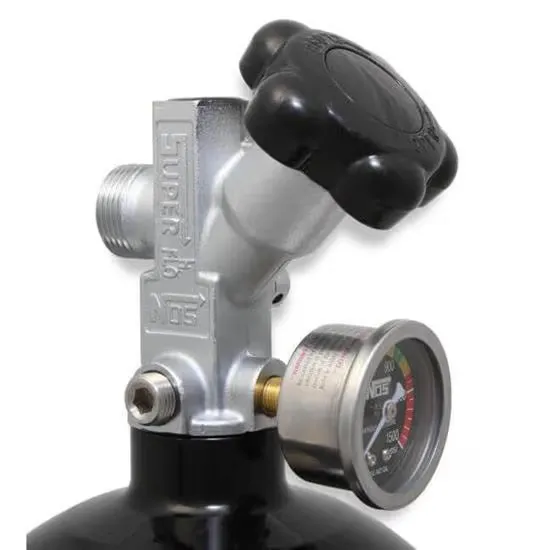

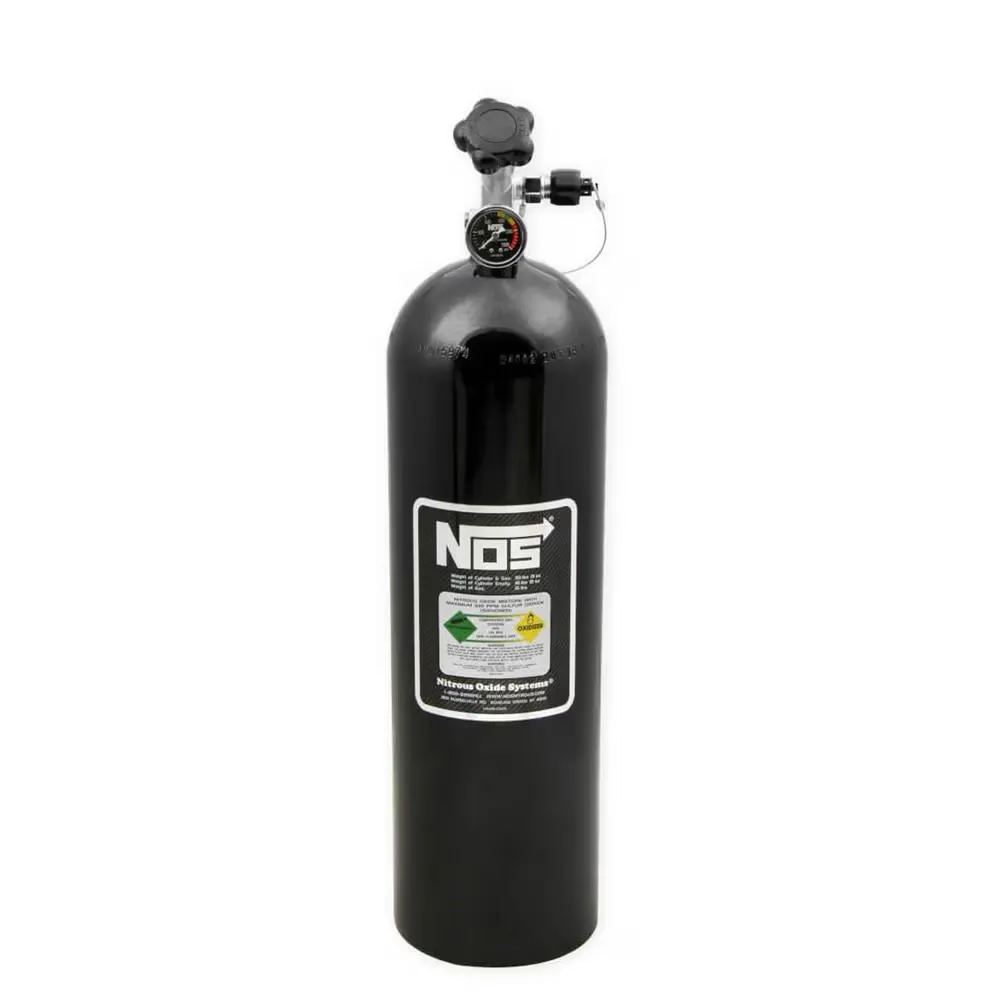

  • Systems available with 10 LB, 15 LB, or 12 LB Carbon Fiber Nitrous bottle
SKU: 42505501BNOS Categories: ,

Description

NOS 05501BNOS Details

NOS sandwich-style plate systems are designed to bolt between the upper and lower intake sections on Holley Hi-Ram LS manifolds. Our dry nitrous systems give you everything you need including 2 NOS Pro-Race nitrous solenoids, brackets, hoses, jetting, and hardware, along with your choice of nitrous bottle. At the center of this system is our machined billet 6061-T6 aluminum plate laser engraved with NOS logo, then anodized for great looks and excellent corrosion protection. Our 1-piece plate features machined passages that precisely spray into the center of each cylinder. Plate includes jetting for up to 250 horsepower but is capable of supporting 1000+ horsepower. The plate is made from billet aluminum with passages machined directly into the plate so there is no need to worry about spray bars breaking or spinning.

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

NOS 05501BNOS Specifications

KEY SPECS
MFG. Part # 05501BNOS
Brand NOS
Material Type Aluminum
Bracket Material Steel
Color Black
GENERAL
GTIN Code 090127057858
Delivery Style Direct Port/Intake Manifold
Nitrous System Style Dry
Activation TPS
Dual Stage No
Bottle Included Yes
Bracket Included Yes
Sold in Quantity Kit
Jet Sizes Included 50, 100, 150, 200, 250
Maximum Advertised Horsepower Increase 250
Nitrous Bottle Capacity 15 lbs.
Nitrous System Intended Fuel Type Gasoline
Notes Kit fits Holley LS Hi Ram intake manifolds only. Includes billet aluminum black anodized plate.
