Description
MSD 7805 Details

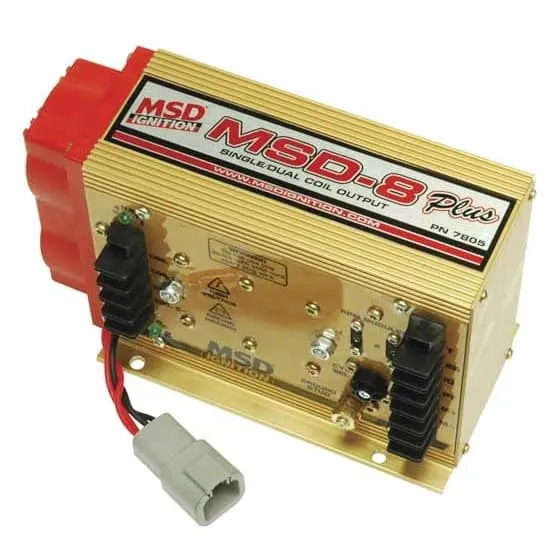

The MSD 8-Plus Ignition produces the same extreme output of the original 8-Series, yet is now in a smaller housing with improved efficiency and internal components. One distinct change is now a built-in 2-Step Rev Control. Now you can switch between two rev limits without extra wiring or housings. For those that are looking for a dual fire MSD 8, the new 8-Plus is all you need. Our engineers were able to deliver an ignition that is capable of firing two coils at once for those extreme racers using dual plug race setups.
Holley Days are back with special instant rebate offers on Holley family of brands. Black Friday special rebate purchases must be made between November 18, 2024 and December 29, 2024.
CARB Warning
For race/ off road use only
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
MSD 7805 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 7805 |
| Brand | MSD |
| Ignition Box Output | Capacitive Discharge |
| Circuitry | Analog |
| GENERAL | |
| Rev Limiter Included | Yes |
| Data Acquisition | No |
| Timing Retard | None |
| Coil Included | No |
| Primary Voltage | 480 Volts output to coil |
| Spark Output | 315-345 MJ |
| Voltage Required | 12-18 Volts |
| Current Draw | 36 Amp at 12000 RPM |
| GTIN Code | 085132078059 |
| Overall Length | 8.25″ |
| Overall Width | 3.75″ |
| Overall Height | 5.75″ |
| Color | Gold |
