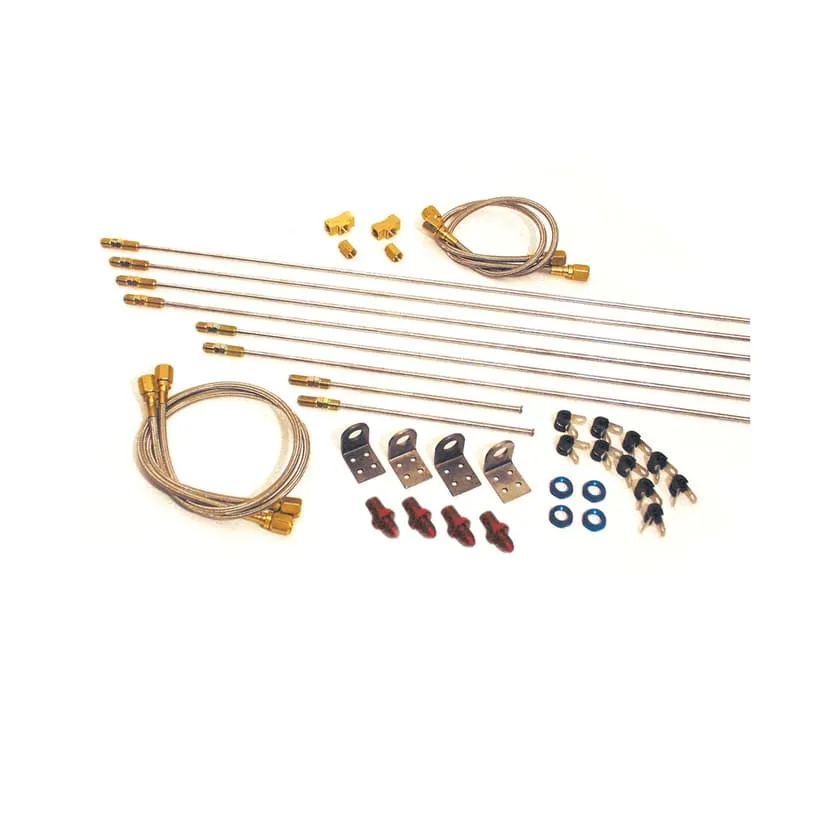

Complete Brake Line Kit

All the parts needed to do the entire car.

Includes 4 Stainless Steel braided lines to go from the chassis to the wheels, an assortment of pre-flared bendable steel chassis lines, connectors, fittings, frame tabs, Adel clamps, wire ties. Enough parts to do almost any car from a midget to a Cup car (order caliper fittings separately).

Steel Braided Brake Lines

Our brake lines use stainless steel braided Teflon line with permanently swedged fittings installed on both ends to help eliminate spongy pedals. Use with any brake fluid. 2500 psi working pressure. #4 AN fittings on both ends.

Kit Specifications

Brake Lines

• Outside Material: Stainless steel braided
• Inside Material: Teflon® lined hose
• Hose Size: -4 AN
• Ends: -4 AN female
• Length 1: 18″ (2 each)
• Length 2: 24″ (2 each)

Hard Lines

• Material: Steel
• Size 1: 3/16″ x 8″ (3 each)
• Size 2: 3/16″ x 20″ (3 each)
• Size 3: 3/16″ x 40″ (4 each)

Fittings / Hardware

• Union: 3/16 IFF x 2 (4 each)
• #4 AN x 3/16 IFF Red with nut (4 each)
• Tee: 3/16 IFF x 3 (2 each)
• Frame Tab: 90º (4 each)

Adel Clamps: 3/16″ (12 each)
