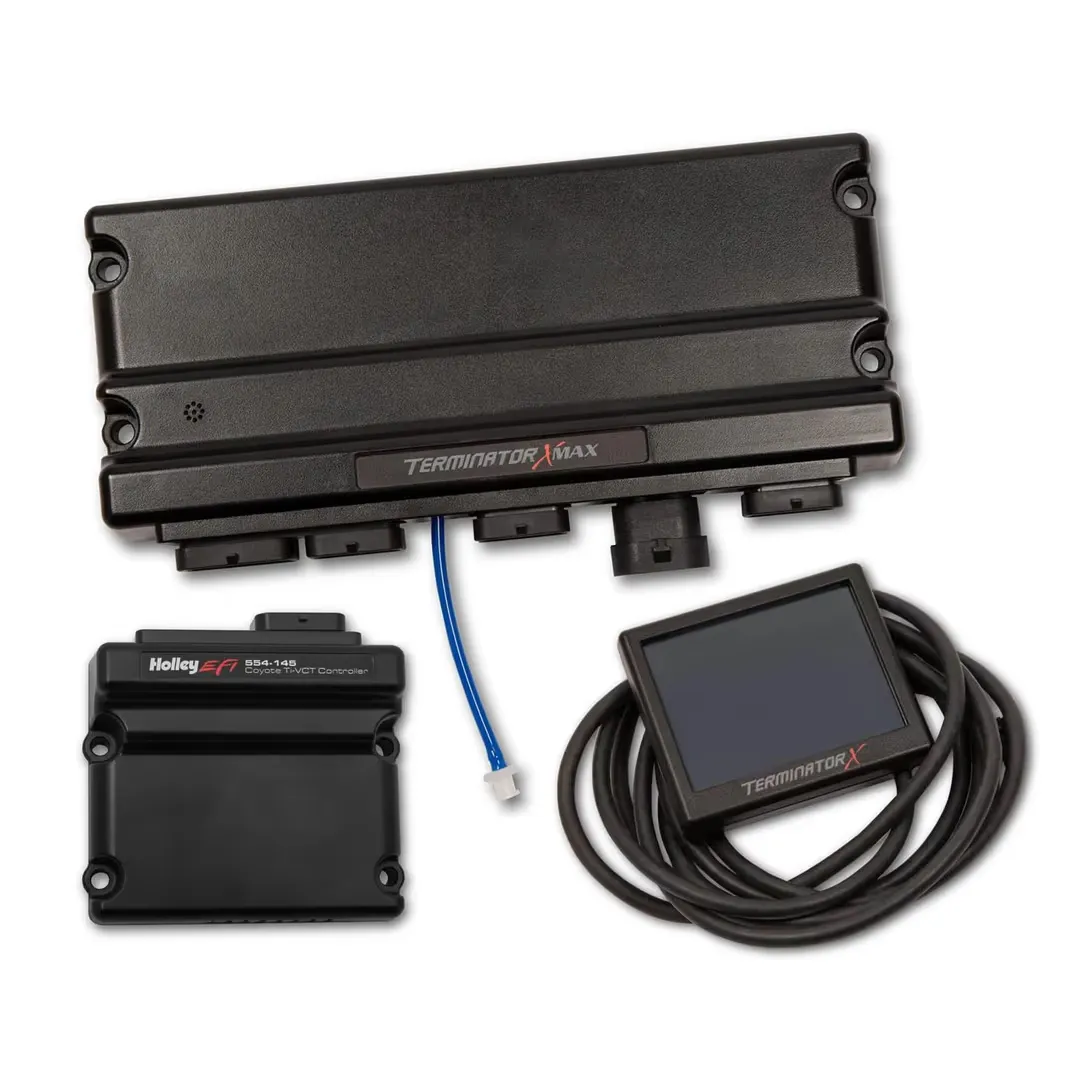

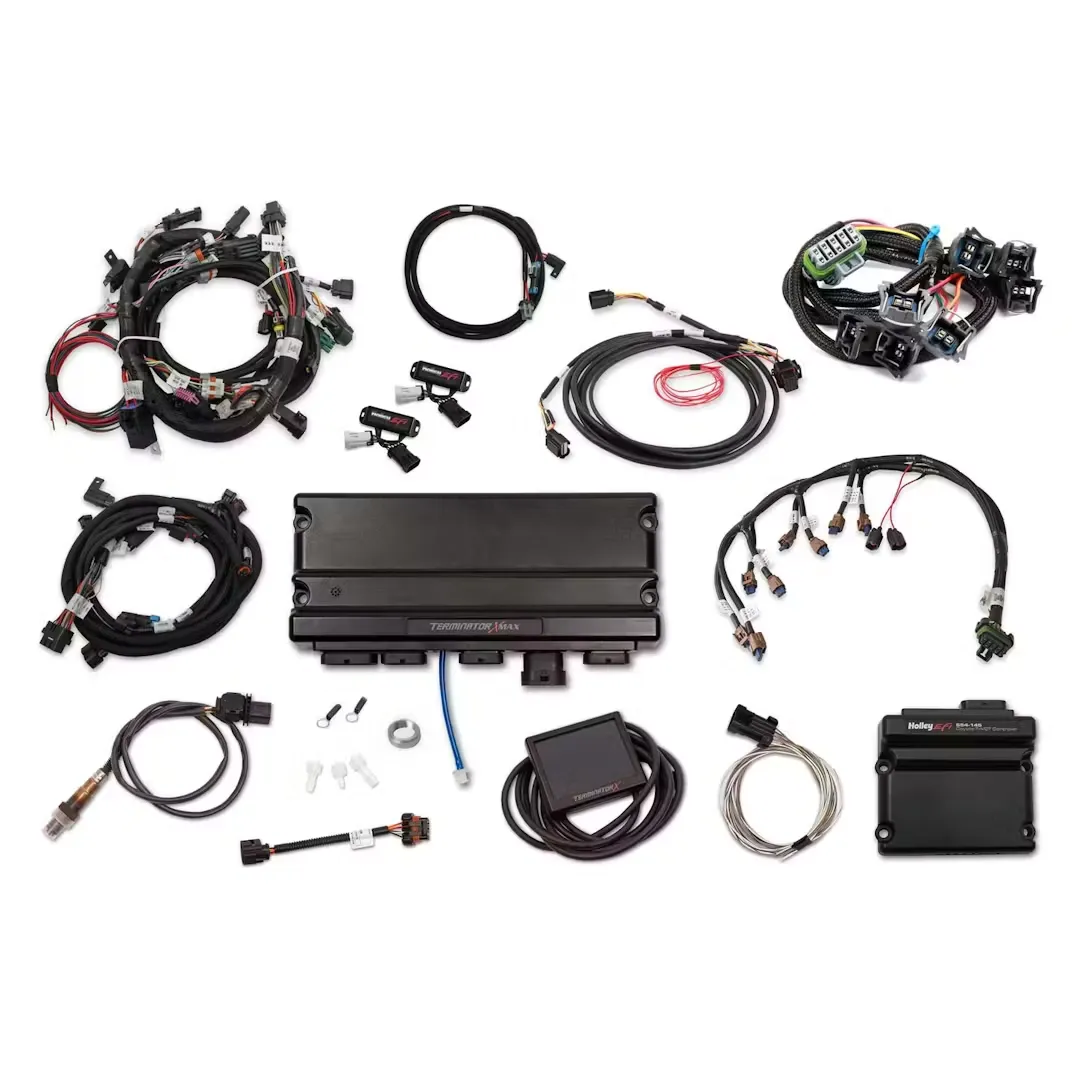

Terminator X and X Max Coyote systems supports Ford Coyote platform with Ti-VCT.Terminator X features real-time fuel learn, high impedance injector drivers, integrated 1bar MAP sensor, and 4 programmable inputs and outputs. These are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more.Terminator X ECU comes fully loaded with base maps for common Coyote engine combinations to get you out of the garage and on the road/track fast. The included 3.5″ LCD touch screen handheld contains an easy to use calibration wizard as well as tuning and gauge display functions.Included with Terminator X is Holley EFI’s industry leading support, easy to use software suite that allows full laptop access/compatibility for advance users. Whether you’re building a budget beater or full on race car, Terminator X has the industry leading features and technology you need at a price that won’t break the bank.

Features:

• Built in 1bar MAP (manifold absolute pressure) sensor included – For Boosted applications – internal MAP sensor can be disabled and utilize external MAP sensor harness (kit includes a terminated connector for seamless installation)
• Vacuum hose adapters included – (1/8″, 1/4″, and 3/16″ sizes)
• 4 inputs – 12v, Ground, 5v, and frequency for items like pressure sensors, activation triggers, nitrous activation, or trans brake
• Boost Control – boost vs. time, boost vs. gear, boost vs. RPM, boost vs. speed, and boost safeties
• Nitrous Control – channels for wet or dry, progressive or non-progressive, rich/lean safeties, and target closed loop AFR (Air/Fuel Ratio)
• Advanced Tables – ( 4x 1D tables, 1x 1D gear table, 4x 2D table, and 1x 2D gear tables) for nearly unlimited table configuration options
• On-board diagnostic LEDS – ECU power, engine run, TPS calibration, cam signal, and more! Identify critical engine parameters at a glance
• 3.5″ touchscreen handheld included – Internal data-logging, custom gauge display, and calibration wizard allow quick building bases tunes for any Domestic V8 engine
• Compact ECU (Engine Control Unit) – At only 7.45″ x 4.1″ x 1.66″ the compact packaging allows mounting virtually anywhere (XMAX ECU = 9.6″ x 4.1″ x 1.66″). REMINDER: diagnostic LED’s must face up!
• FREE EFI Tuning software – For compete control of your Terminator X power plant
