Description

Description:
Horsepower & Torque: 540 Horsepower / 535 FT. LBS. Torque
Compression Ratio: 10.0:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons
Block:
Kezar’s Perfomance High Strength Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.125″ Bore
1-Piece Rear Main Seal
Mechanical Fuel Pump Provision: Yes
Passenger Side Dipstick
Drilled and Tapped for Clutch Linkage
Rotating Assembly:
New BluePrint Forged Crankshaft
4.000″ Stroke
Forged 6.000″ Connecting Rods
Forged Pistons
Internally Balanced Front and Rear
Cylinder Heads:
BluePrint Aluminum Cylinder Heads – HP8103
66cc Chamber
2.08″ Intake / 1.60″ Exhaust Valves
220cc Intake / 67cc Exhaust Runners
Cam Specs:
Cam Type: Roller
.577 Intake / .577 Exhaust Lift
240 Intake / 248 Exhaust Duration
@ .050-112 Degree Lobe Separation
Ignition Timing:
Initial Timing 10-16° and Total Timing 32-34°
Also Includes:
Satin Aluminum Intake Manifold
Holley Sniper 2 EFI System
Valve Covers
Oil Pan
Timing Cover
Spark Plugs and Wires
Thermostat and Thermostat Housing

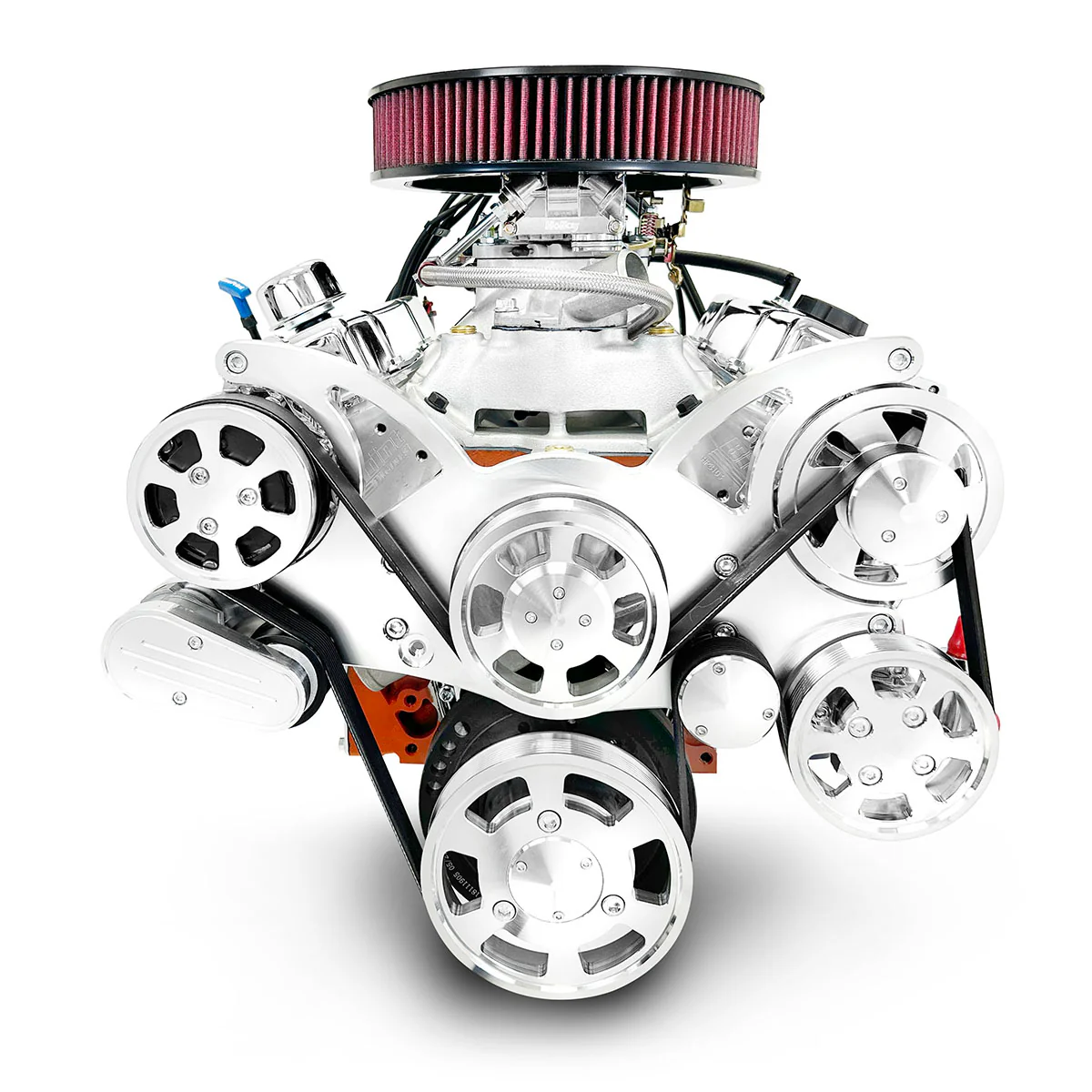

Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
EFI Fuel Pump Kit
Assembled with Complete 700R4 Automatic Transmission Package:
700R4 Complete Package
2200-2400 Stall Torque Converter
Flex Plate
Starter
