Overview:

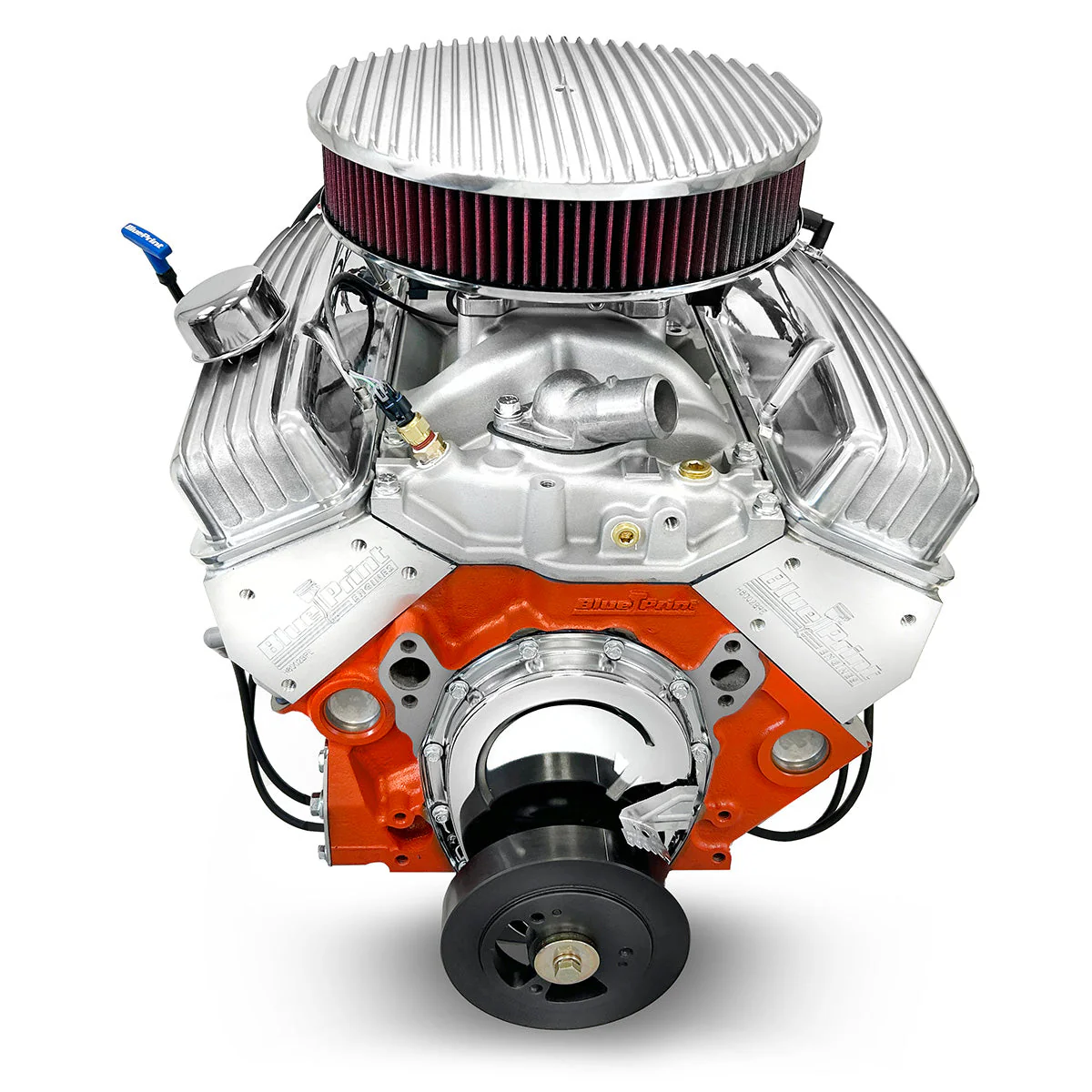

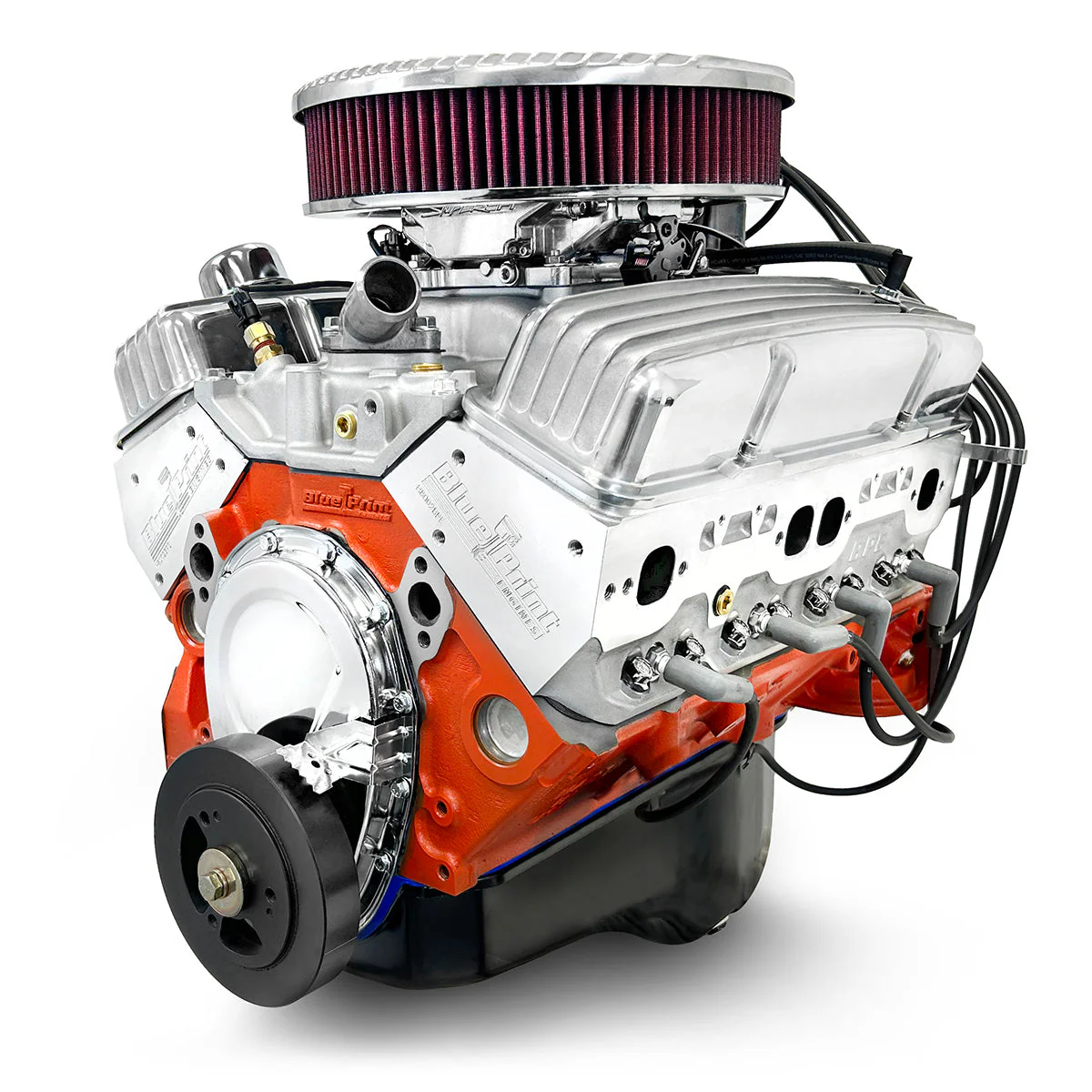

Blueprints BP327CTFV GM Small Block Compatible performance crate engines are dyno tested at our factory with a Holley Sniper II EFI System. This produces 350 horsepower and 350 ft. lbs. torque. This engine comes as a deluxe dressed engine with: Premium Vintage Valve Covers, Premium Vintage Air Cleaner as well as the Fuel Pump and Feed lines. Makes this engine a great drop in for performance.

Description:
Horsepower and Torque: 350 Horsepower / 350 FT. LBS. Torque
Compression Ratio: 9.4:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Hypereutectic Pistons
Block:
Kezar’s Perfomance High Strength Cast Iron Block
4-Bolt Main
4.000″ Bore
1-Piece Rear Main Seal
Mech Fuel Pump Provision: Yes
Passenger Side Dipstick
Drilled and Tapped for Clutch Linkage
Rotating Assembly:
New BluePrint Forged Crankshaft
3.250″ Stroke
Forged 5.700″ Connecting Rods w/ 150,000 PSI Bolts
Hypereutectic Pistons
Internally Balanced Front – External Balanced Rear
Cylinder Heads:
BluePrint Aluminum Cylinder Heads – H8002K
64cc Chamber
2.02″ Intake / 1.60″ Exhaust Valves
195cc Intake / 75cc Exhaust Runners
Cam Specs:
Hydraulic Roller
.495 Intake / .502 Exhaust Lift
220 Intake / 224 Exhaust Duration
@ .050-114 Degree Lobe Separation
Ignition Timing:
32-34 Degrees Total at 3500 RPM
Also Includes:
Holley Sniper 2 EFI System
Premium Vintage Valve Covers
Premium Vintage Air Cleaner
6.75-inch Harmonic Balancer
Spark Plugs
Under Header Spark Plug Wires (Perfect for Rams Horn exhaust manifolds)
Oil Pan
Timing Cover
Aluminum Intake Manifold
Pro Billet Distributor
Thermostat and Thermostat Housing
