Description

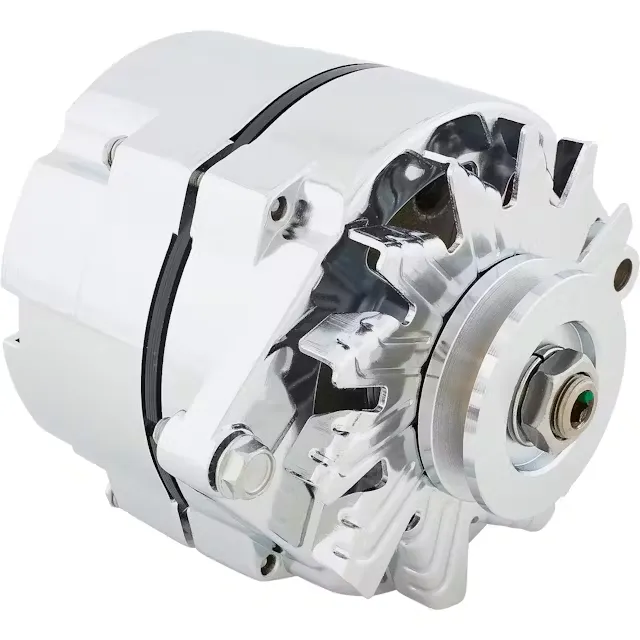

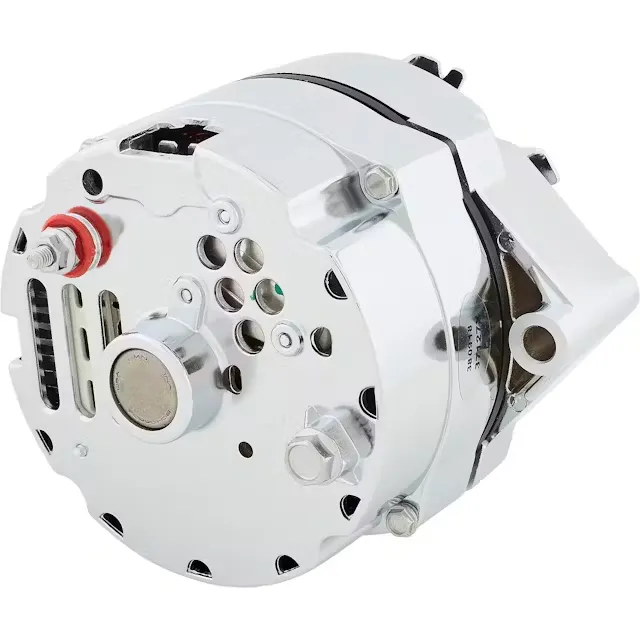

Streamline the engine compartment in your street rod or muscle car by eliminating excess wires with this King Chrome 1-wire alternator. Based on the GM Delco-Remy 10SI alternators, these 65-amp units are perfect for vehicles with few electical accessories. King Chrome alternator housings are hand polished to a high luster prior to applying the show-quality triple chrome finish.

This one wire alternator simply needs hooked up direct to the main battery lead or power source. Then the internal regulator picks up the available current and kicks the alternator into the charge mode at the pre-set voltage.

• Hand polished, triple chrome plated finish
• Quick, easy hook-up with supplied instructions
• Internally-regulated GM 10SI style alternator
• Attaches to all popular GM alternator brackets
• Direct replacement for most 1969-85 GM cars and light trucks
• Excellent idle output

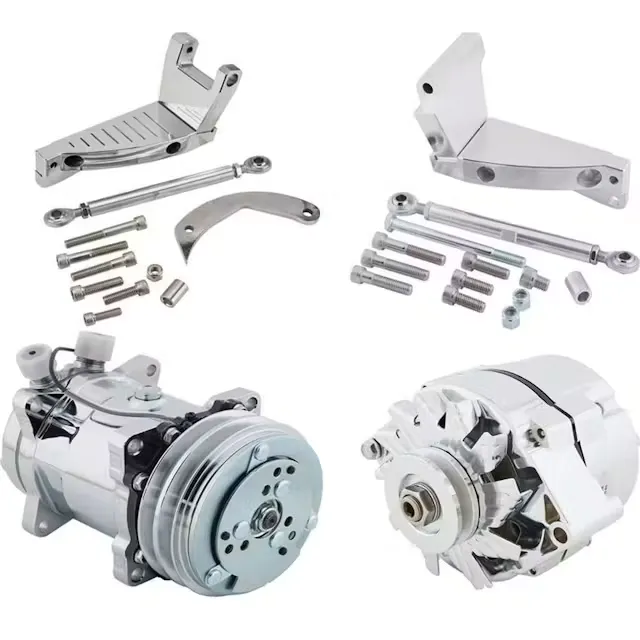

Alternator & A/C Brackets

We all know what a pain it is to come up with a pulley, bracket, and belt combination to work on your small block Chevy engine. We have pre-engineered our polished billet aluminum brackets to make this a simple installation.

Outboard mount for fat fendered cars.

• For Small Block Chevy / Short Water Pump / Sanden SD508 Style A/C Compressor Installation Application
• There must be at least two holes in the front of the passenger side cylinder head for this bracket to attatch to
• Bolt spacing is 3.30″ center to center

Note: S/B Chevy, short style water pump only.  Not to be used in conjunction with power steering due to belt interference with the power steering pump.

A/C Compressor

The Sanden type 508 compressor provides ample capacity for even large interiors and will enhance the appearance of your engine compartment.

KEY SPECS
MFG. Part #	9100752
Brand	Speedway Motors
One Wire Alternator	Yes
Alternator Amperage	65 amp
Alternator Finish	Chrome plated
Belt Type	V-Belt
GENERAL
Alternator Case Style	GM 10SI
Voltage Required	12-Volt
Regulator Style	Internal
Regulator Included	Yes
Alternator Material	Steel
Alternator Pulley Included	Yes
Belt Width	0.375″
Alternator Brackets Included	Yes
Alternator Bracket Material	Billet Aluminum
Sold in Quantity	Kit
Belt Included	No
