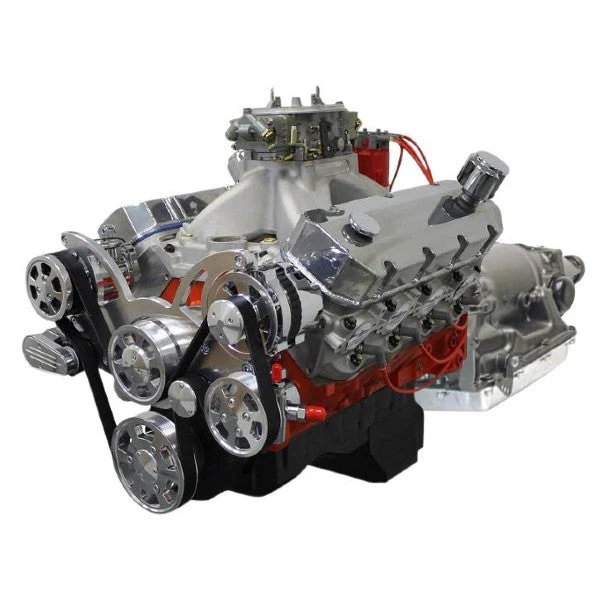

Description

Description:
Horsepower & Torque: 815 Horsepower / 775 FT LBS
Compression Ratio: 11.0:1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Forged Pistons
Block:
Kezar’s Perfomance High Strength Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.600″ Bore
1-Piece Rear Main Seal
Mech Fuel Pump Provision: Yes
Tall Deck (Cylinder Deck is Approx .400 Taller / Wider than OEM Block)
Rotating Assembly:
New BluePrint Forged Crankshaft
4.750″ Stroke
Forged H-beam 6.635″ Connecting Rods
Forged Pistons
Internally Balanced
Cylinder Heads:
BluePrint Aluminum Cylinder Heads – PS8012
119cc Chamber
2.30″ Intake / 1.88″ Exhaust Valves
358cc Intake / 125cc Exhaust Runners
Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
Cam Specs:
Cam Type: Roller
.698 Intake / .698 Exhaust Lift
272 Intake / 282 Exhaust Duration
@.050-110 Degree Lobe Separation
Also Includes:
Valve Covers
Oil Pan
Timing Cover
Harmonic Balancer
EFI Fuel Injection System
Intake Manifold
Pro Billet Distributor
Front Accessory Drive with Alternator, Power Steering Pump, A/C Compressor, and Water Pump
Aeromotive A1000 Fuel Pump
Thermostat and Thermostat Housing
Assembled with Complete 4l80e Automatic Transmission Package:
4L80E Complete Package with Electronic Controller Included
W/Lockup Capability
3800+ Stall Torque Converter
Flex Plate
Starter
4L80E Gear Ratios:
1: 2.482
2: 1.482
3: 1.00
4: 0.750
R: 2.077
