Description
When it comes to cranking serious torque from the classic Small-Block, it’s hard to beat the 383 stroker combination, which uses a long, 3.800-inch stroke with 4.005-inch bores to generate exceptional low-end pulling power and surprising high-rpm horsepower.
Rock solid base

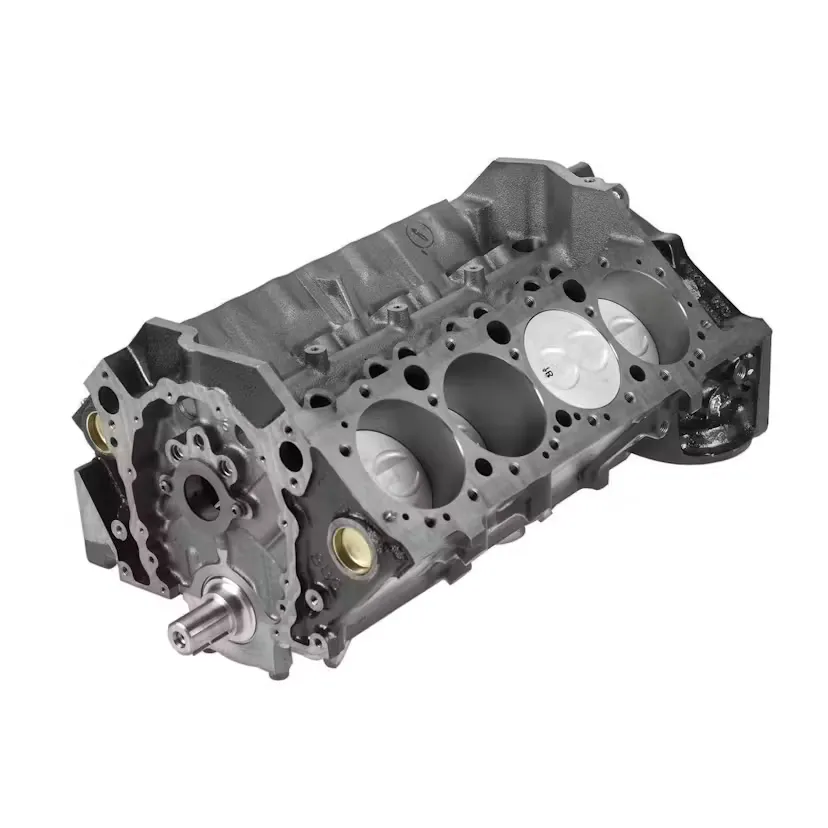

The 383 Short Block is the base for Chevrolet Performance SP383 crate engines. Compression ratio with 64cc cylinder heads (not included) is approximately 9.6:1.
383 Short Block Tech Specs
| KEY SPECS | |
|---|---|
| MFG. Part # | 19418654 |
| Brand | Chevrolet Performance Parts |
| Crate Engine Type | Short Block |
| Engine Displacement | 383 cu. in. |
| Compression Ratio | 9.6:1 |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Forged 4340 Steel |
| Spark Plug Style | Straight |
| Bore x Stroke (in) | 4.000″ x 3.800″ |
| Carburetor Included | No |
| Intake Manifold Included | No |
| Distributor Included | No |
| Connecting Rod Material | Powdered Metal |
| Valve Covers Included | No |
| Engine Balance | External |
| Cylinder Heads Included | No |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | No |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | No |
| Harmonic Balancer Included | Yes |
| Flexplate Included | Yes |
| Flywheel Included | No |
| Air Cleaner Included | No |
| Spark Plugs Included | No |
| Spark Plug Wires Included | No |
| Computer Included | No |
| Wiring Harness Included | No |
| GENERAL | |
| Maximum RPM | 5000 |
| Assembled | Yes |
| Block | Cast iron with 4 bolt main caps |
| Sold in Quantity | Each |
