Description

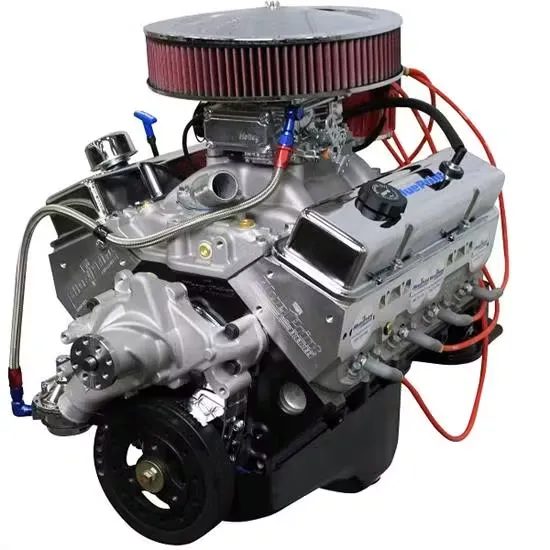

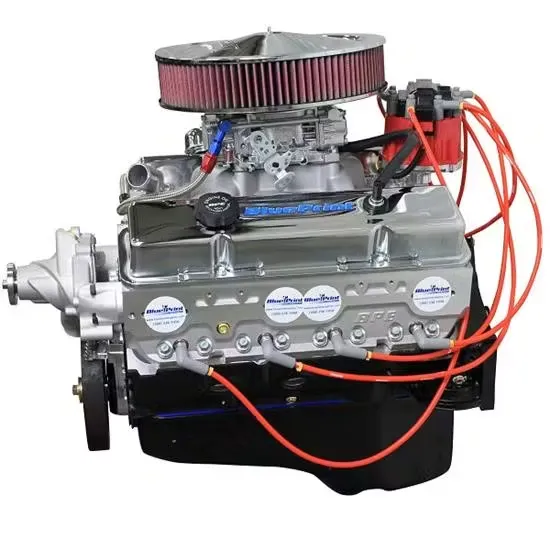

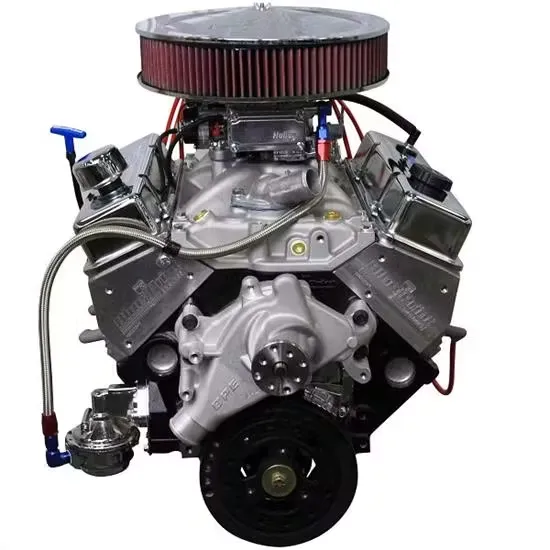

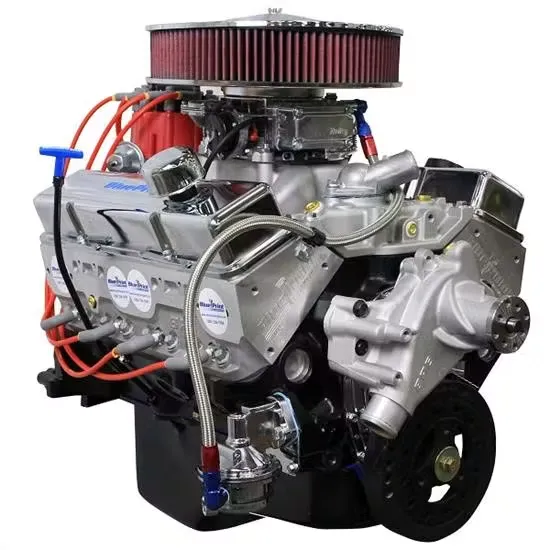

BluePrint Engines BP350CTCD Details
BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA!
4-Bolt Main
4.000″ Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage
ROTATING ASSEMBLY:
Cast Iron Crankshaft
3.480″ Stroke
Forged 5.700″ connecting rods
Hypereutectic pistons
Internal Front/ External Rear engine balance
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads – H8002K
64cc chamber
2.02″ intake/1.60″ exhaust valves
195cc intake/75cc exhaust runners
CAM SPECS:
Cam Type: Roller
.477 Intake .471 Exhaust
202 Intake / 212 Exhaust duration
@ .050 – 115 degree lobe separation
IGNITION TIMING:
32 Degrees Total at 3500 RPM
ALSO INCLUDES:
Valve covers
Harmonic balancer
Spark plugs
Spark plug wires
Standard Rotation Long Style Water Pump
Waterneck and Thermostat
Fuel Pump
Oil pan
Timing cover
Aluminum intake
HEI distributor
600 cfm carburetor
Dyno test results shipped with engine
WARRANTY:
30 month / 50,000 mile
NOTES:
This engine is an excellent cruiser and daily driver engine. This engine makes up to 18 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
BluePrint Engines BP350CTCD Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | BP350CTCD |
| Brand | BluePrint Engines |
| Crate Engine Type | Connect and Cruise |
| Engine Displacement | 350 cu. in. |
| Horsepower | 341 horsepower |
| Compression Ratio | 9.2:1 |
| Torque | 371 ft./lbs. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Piston Material | Hypereutectic Aluminum |
| Crankshaft Material | Cast Iron |
| Combustion Chamber Volume | 64cc |
| Camshaft Duration (.050 in) | 202° intake / 212° exhaust |
| Camshaft Lift (in) | .477 intake / .471 exhaust |
| Bore x Stroke (in) | 4.000″ x 3.480″ |
| Carburetor Included | Yes |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Valve Covers Included | Yes |
| Engine Balance | Internal/External |
| Cylinder Heads Included | Yes |
| Rear Main Seal Style | 1-piece |
| Throttle Body Included | Yes |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Air Cleaner Included | Yes |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Computer Included | No |
| Wiring Harness Included | No |
| GENERAL | |
| Assembled | Yes |
| Cylinder Head Style | Assembled |
| Intake Valves Included | Yes |
| Exhaust Valves Included | Yes |
| Valve Spring Included | Yes |
| Retainers Included | Yes |
| Rocker Arm Studs Included | Yes |
| Rocker Arms Included | Yes |
| Valve Guides Included | Yes |
| Carburetor Quantity | One |
| Intake Gaskets Included | Yes |
| Camshaft Included | Yes |
| Lifters Included | Yes |
| Sold in Quantity | Each |
