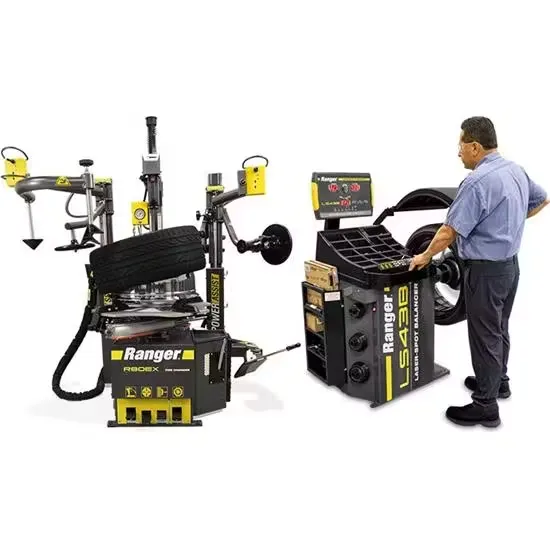

Looking to save time? An R80EX tire changer is a must-have machine for busy shops that don’t have a minute to waste. A multi-profile traveling drop-center tool, top bead assist rollers, dual lower bead lifting discs and a nylon non-marring wheel restraint device are important tire shop tools designed to dramatically reduce effort, increase safety and help minimize operator fatigue. A large 34″ capacity turntable with adjustable hardened-steel RimGuard™ wheel clamps helps broaden the service range, so you can handle virtually any wheel that rolls in your shop. Explore this tire machine if your shop life demands a tool that will generously handle round-the-clock use and abuse.

The Ranger LS43B laser wheel balancer handles wheels up to 43 inches in diameter. The average cycle time is just 7 seconds, making it one of the fastest floor-to-floor balancing machines ever built.

• R80EX tire changer features a dual-assist, tilt-back tower design outfitted with the industry’s best and most powerful tools
• Tilt Back, Dual-Tower Assist, 34″ Clamping Capacity
• Ranger LS43B laser wheel balancer optimizes wheel weight placements with exclusive Laser-Spot™ technology
• Laser lines clearly indicate outboard and inboard weight placements for incredible balances within hundredths of an ounce
• Wheel Balancer with 3D Quick-Touch™ Laser-Spot™, 40 mm Shaft

R80EX: Tilt Back / Dual-Tower Assist / 34″ Clamping Capacity

• Table Clamping System
• Dual Pneumatic Cylinders
• Wheel Clamping Method
• 4 Wheel Clamps – Internal / External
• Adjustable RimGuard™ Wheel Clamps
• Bead Loosener SystemAnd
• Pneumatic Blade
• Bi-lateral Power-Controlled Bead Loosener
• Bead Loosener Control Single-Lever Control on Shovel Handle
• Power Assist Towers
• Dual / Left And Right
• Upper Bead Assist Roller
• Standard / Dual Power-Drop
• Traveling Drop-Center Hold Down Device
• Wheel Centering Tool / Inflation Restraint Device
• “Turbo-Blast” Bead Seating System
• Tool Tray / Bin Storage
• Inflation Gauge With Integrated Air Dump Valve
• Inflation Pressure Regulator/Limiter
• Water Filter / Oiler / Lubricator
• Air Regulator
• Tire Iron / Bead Lever Tool
• Large Soap / Lubricator Bucket
• Brush
• Tower Design Tilt-Back

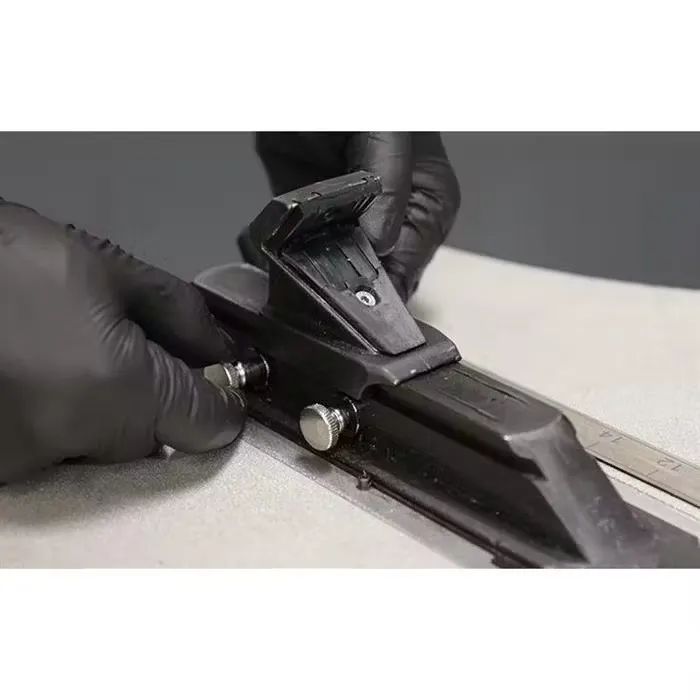

Adjustable RimGuard™ wheel clamps
Ranger’s trademark wheel clamps feature internal and external multi-teeth jaws.

Advanced clamp positioning
Variable clamp positioning makes wheel service simple, perfectly controlling the wheels when clamping them. Operators have the freedom to freely and precisely position clamps within the entire clamping range. There’s no need for the clamps to cycle the full range.

Power-controlled bead loosener
A bilateral, power-controlled bead loosener features single-lever control on the shovel handle. This ergonomic design eliminates traditional foot-pedal controls that often force technicians into unbalanced working stances when loosening beads.

Adjustable bead loosener shovel blade
A multi-axis and adjustable bead loosener shovel blade helps accommodate a larger variety of tire and wheel combinations.

100% stainless-steel bead loosener cylinder
No more worrying about moisture contamination from corrosion due to air source condensation. The stainless-steel cylinder is completely resistant to chemical erosion, rust and other damaging effects of weather over time.

Dual-flange bead loosener
The oversized axle minimizes blade flex and improves durability.

Enhanced bead-breaker arm
The tire changer’s arm features a rugged box frame construction that increases strength and ensures years of dependable service and performance.

Pneumatic control valves
Industrial-grade, 45-micron pneumatic control valves feature die cast and machined bodies constructed from zinc and aluminum. High-performance polyurethane seals and self-lubricating, Teflon® piston guides provide increased service life and performance at the highest level possible within almost every imaginable working condition.

Balanced flywheel
A balanced flywheel helps the machine run smoothly, reduces vibration and helps minimize associated stress on other machinery components.

Simple foot-pedal control
Durable forged steel (instead of cast iron) foot pedal levers will stand up to everyday use and abuse in high-volume tire centers.

Sealed electrical components
All main-lead electrical terminals, auxiliary switches and motor enclosures are sealed for air-tight, dust-free and contamination-proof protection of terminal leads.

Pneumatic tubing
Ranger Next Generation™ tire changers feature high-pressure polyurethane pneumatic tubing with mirror-smooth seamless bore for exceptional flow rates, high abrasion resistance, high burst tolerance and maximum kink resistance.

Advanced drive belt system
Specially engineered drive belt features convex sidewalls to distribute wear evenly while providing proper belt support for improved service life. Both flex-bonded cords and flex-weave covers resist the effects of oil, heat, ozone, weather and aging.

Maintenance-free gearbox
A maintenance-free gearbox features a large oil and grease reservoir that helps provide efficient heat dissipation and improved lubrication for longer service life. Internal baffles and a constant-seating stress flange gasket ensure positive, leak-free venting. The rugged gearbox enclosure is precision-milled for precise alignment of horizontal and vertical bases and features precision helical gears that operate much more smoothly and quietly than typical spur gear transmissions.

Updated electric motor
Improved electric motor features the best of proven technologies, including rugged copper rotor construction, high-quality bearings, thermal-cool epoxy insulation and durable rolled steel frames.

Left and right-side tower drop-center design
Powerful left-side assist tower features a multi-profile traveling drop-center tool that holds stubborn sidewalls in the drop-center, a single lower bead lifting disc and a pneumatic non-marring wheel positioning and restraint device that simplifies external mounting procedures and helps restrain wheels during inflation.

Tilt-back tower design
The tilt-back tower provides greater clearance and access for tire removal and inflation. Pneumatic-lock tool head stays positioned on the tower return for instant set up for like sets of tires and wheels.

Stainless steel and aluminum pneumatic cylinders
Ranger’s cylinders are designed to reduce machine vibration and provide low friction and long life operation. Internal end-of-stroke cushions come standard and help provide support at the end of each full stroke to reduce wear on seals, wear band and piston rod. Permanent lubrication design provides outstanding service life.

Multi-function mount and demount head
The hardened alloy steel mount and demount head has a unique equi-dimensional shape that allows you to perform all changing functions with the tool head in the same position. The micro-smooth tool head surface glides tire beads effortlessly during mounting and demounting procedures to ensure costly tire damage is minimized.

Spring-assisted tool shaft
A rigid, 45 mm spring-assisted hexagonal vertical tool shaft, combined with a hardened-steel horizontal outrigger support arm, maintains perfect position of the mount-demount tool head during all tire service procedures to reduce the chance of expensive wheels getting damaged.

Foot-controlled tire inflator
A simple-to-use tire inflator features foot-pedal operation and inflation hose with a sure-grip clip-on valve chuck, enabling hands-free operation. Integrated air pressure dump valve enables you to lower tire pressure with a simple push of a button.

TurboBlast™ bead seating
Ranger tire changers feature the renowned TurboBlast™ bead seating system that blasts a powerful air burst between the tire and rim to help seat stubborn beads fast. A durable, non-marring nylon discharge barrel features a contoured tab that locks securely on the edge of the rim for better control during air discharge between the tire and wheel. A welded-steel, eight-gallon surge tank is larger than competitive models for all the inflation power you need, when you need it.

Space for storage
Plenty of storage area for tools and accessories. Helps keep your shop tidy and operation-critical tools close at hand.

Hose/wire protection
Stainless steel braided metal conduit protects hoses and wires from abrasion and wear.

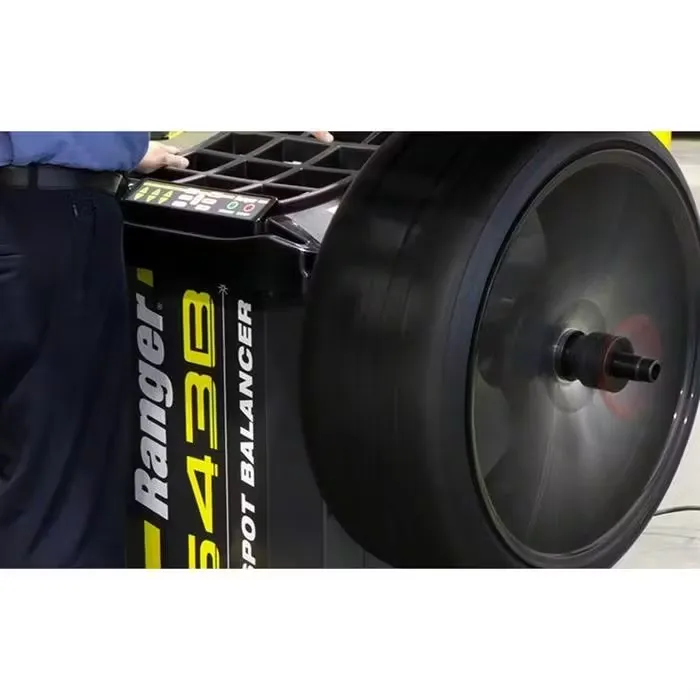

LS43B: Wheel Balancer / 3D Quick-Touch™ Laser-Spot™ / 40 mm Shaft

• Dynamic, Static, and Performance Alloy settings
• Multi-user save function holds presets to increase productivity
• Ergonomic control board and easy-to-read LED display
• A simultaneous retrieval of static, dynamic and ALU1/ALU2/ALU3 data
• Automatic rolling wheel parameter setting feature saves time, minimizes errors
• Low-RPM balancing speed
• Rapid 7-second cycle time
• Automatic braking
• Gram/ounce selection and millimeter/inch selection
• Automatic round-off with top-dead-center weight position indicator
• Tiered weight placement indicators help identify out-of-sight position weight placement (such as split-weight or hidden “behind-the-spoke” techniques)
• Manual or automatic start when hood is lowered
• Self-calibration function
• High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools
• Newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel™ adhesive tape weight convenient bulk rolls
• Precision-machined, hardened-steel 40 mm shaft
• Quick-release hub nut for dramatically reduced set-up times
• Automatic brake hold wheels at precisely 12-o’-clock for proper weight placement
• Side cone storage pegs keeps accessories readily available
• “Open-side” hood design allows for a broader coverage of tire shapes and sizes

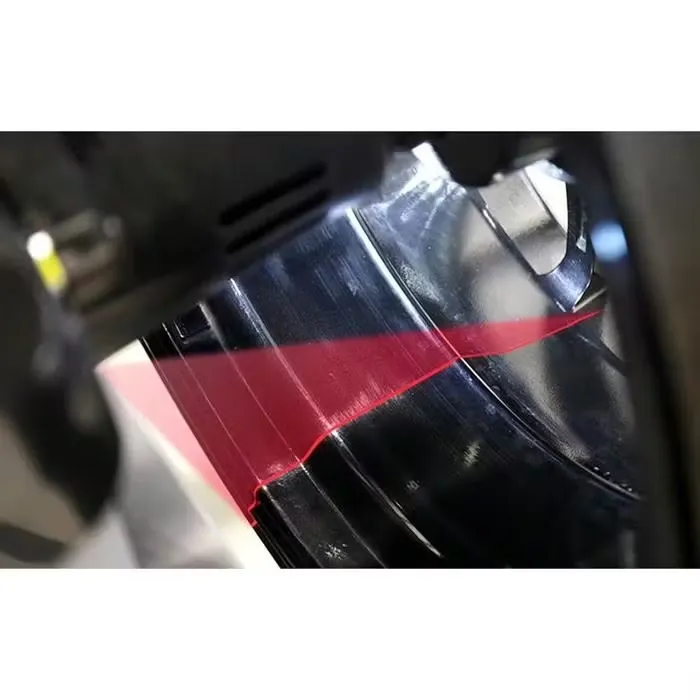

Laser-Spot Technology
Laser balancers are increasingly being used in high-volume shops because lasers eliminate second-guessing and speed up weight placements. This also means the balance check you perform after placing inboard and outboard weights will almost always be clean. The fewer weights you use, the better your bottom line. Plus, customers will enjoy long-lasting balances that make their rides feel like new again.

Automatic wheel data entry
This balancer features Ranger’s exclusive 3D Auto Data Entry technology, so you never have to manually input wheel parameters again. It takes most techs an average of three seconds to retrieve the wheel diameter, wheel width and offset distance from this balancer.

Highly precise digital sensor technology
Ranger’s highly accurate Digital Sensor Technology features a 16-digit digital signal processor and single-chip technology that increases productivity and offers unprecedented speed and accuracy, especially during the sophisticated balance and weight placement techniques required for newer high-tech OEM and aftermarket wheels.

Automatic braking
After a quick spin of the wheel, a dual-plane automatic electromagnetic braking system automatically slows, stops and holds the wheel in the correct position, eliminating the need for a foot-activated brake with wheel-holding pedals. This gives technicians the freedom to move without restraint when placing weights on both the inner and outer faces of the wheel.

Multi-directional quartz piezoelectric load sensors
Dual-component piezoelectric quartz load sensors and digital rotation encoder measure longitudinal, transversal and shear effects for multi-directional force unbalance detection.

Quick and precise setup
A self-centering, non-marring Quick-Nut and bell adapter set ensures proper centering of the wheel and eliminates counterproductive setup errors. You’ll mount wheels faster and easier, minimizing the risk of customer come-backs or costly wheel damage.

Mounting cone package
Included with every machine are both standard and heavy-duty mounting cones, as well as a full accessory tooling package. The LS43B laser balancer’s tooling package includes our standard car and light truck cones, as well as a heavy-duty truck cone. This well-equipped package includes three automotive and light truck cones: 1.75″ – 2.75″, 2.75″ – 3.50″ and 3.50″ – 4.25″, as well as one truck cone 4.50″ – 5.00″.

Automatic weight optimization
The LS43B laser wheel balancer features a computer interface with weight optimization technology that automatically calculates the minimum amount of weight needed to achieve optimal balance. Minimizing weight usage at your place of business is sure to add up to real savings over time and ultimately increase your bottom line.

LED rolling wheel weight displays
Bright LED weight placement indicators show weight positions as the wheel is gently rolled to exact top-dead-center. Tiered weight placement indicators help identify out-of-sight weight placements, such as split-weight or hidden “behind-the-spoke” techniques.

Wheel weight starter kit
A free kit of wheel weights is included with every new LS43B laser wheel balancer. Each unit’s starter kit contains one bulk roll of 100 silver adhesive steel tape weights, one bulk roll of 100 black adhesive steel tape weights and one starter box of mixed clip-on steel weights. It’s our way of getting you off on the right foot. Additional Ranger wheel weights are available for purchase at any time.
