Description

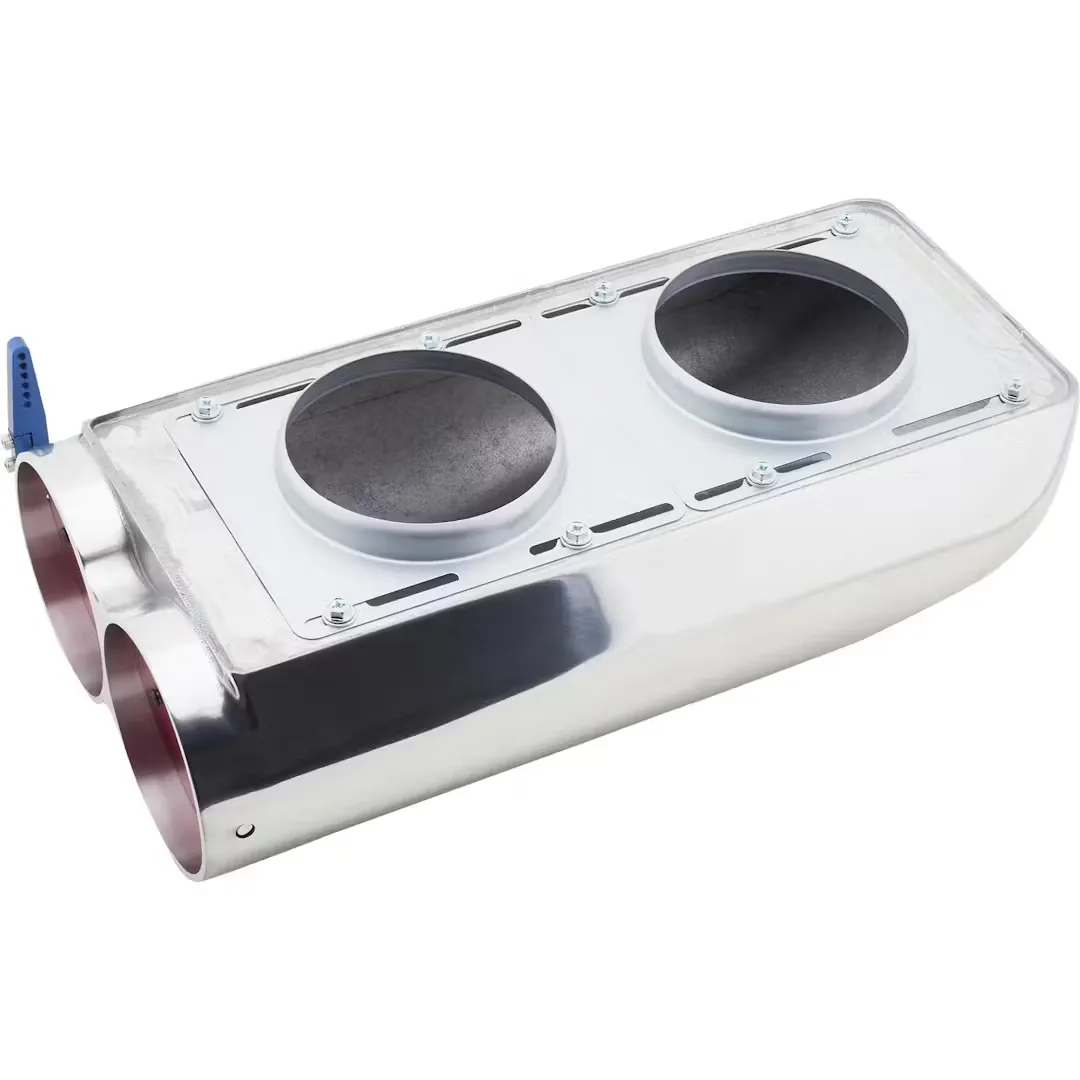

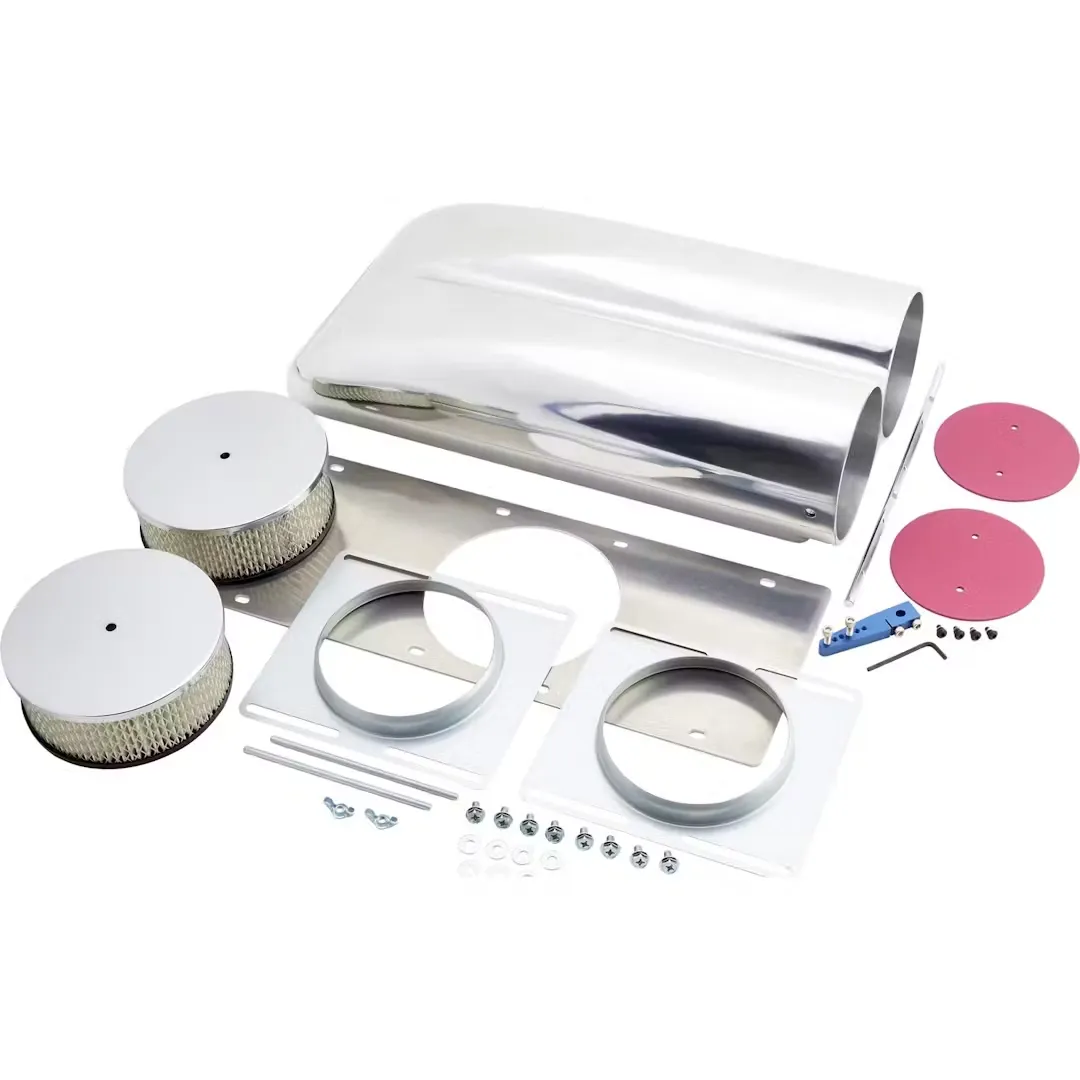

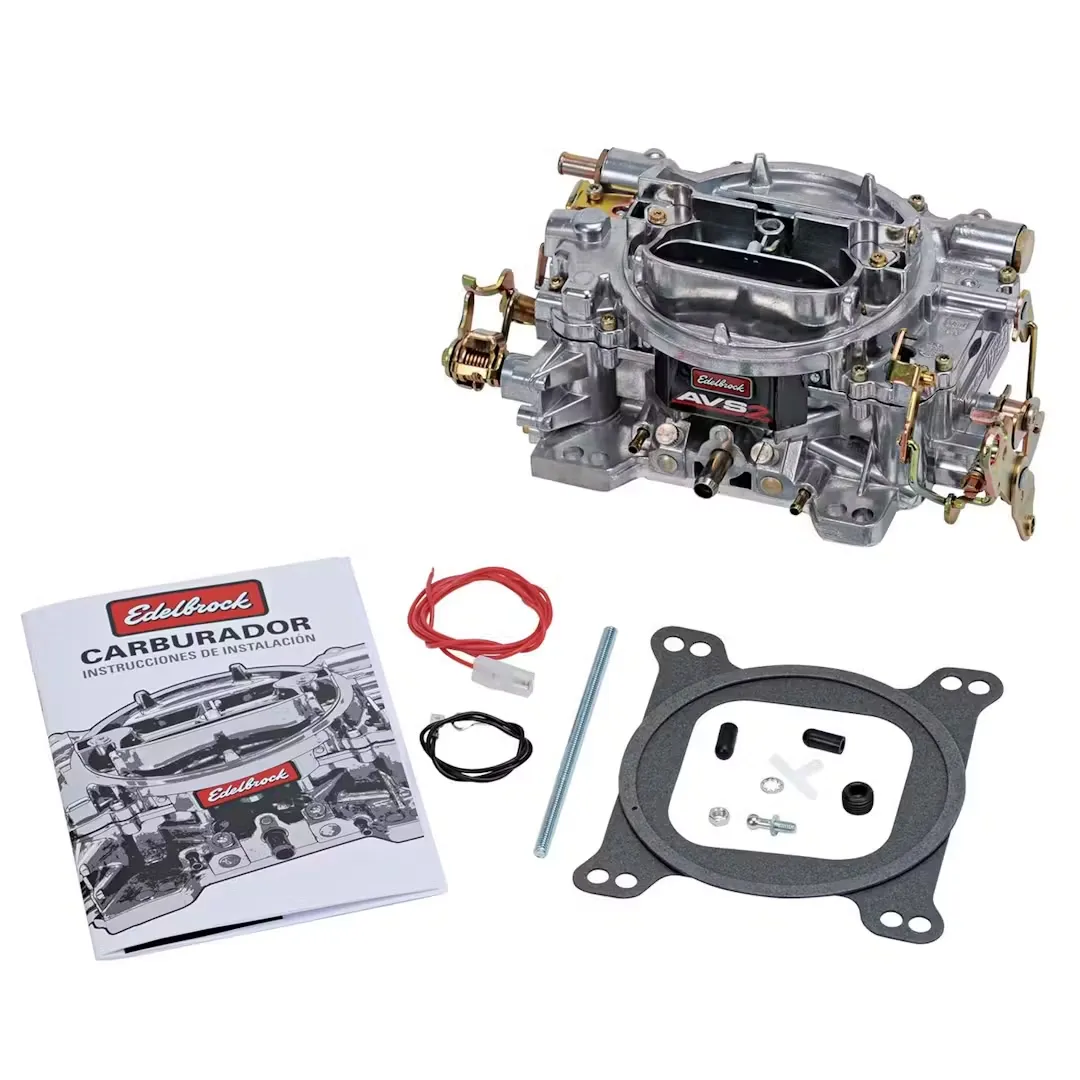

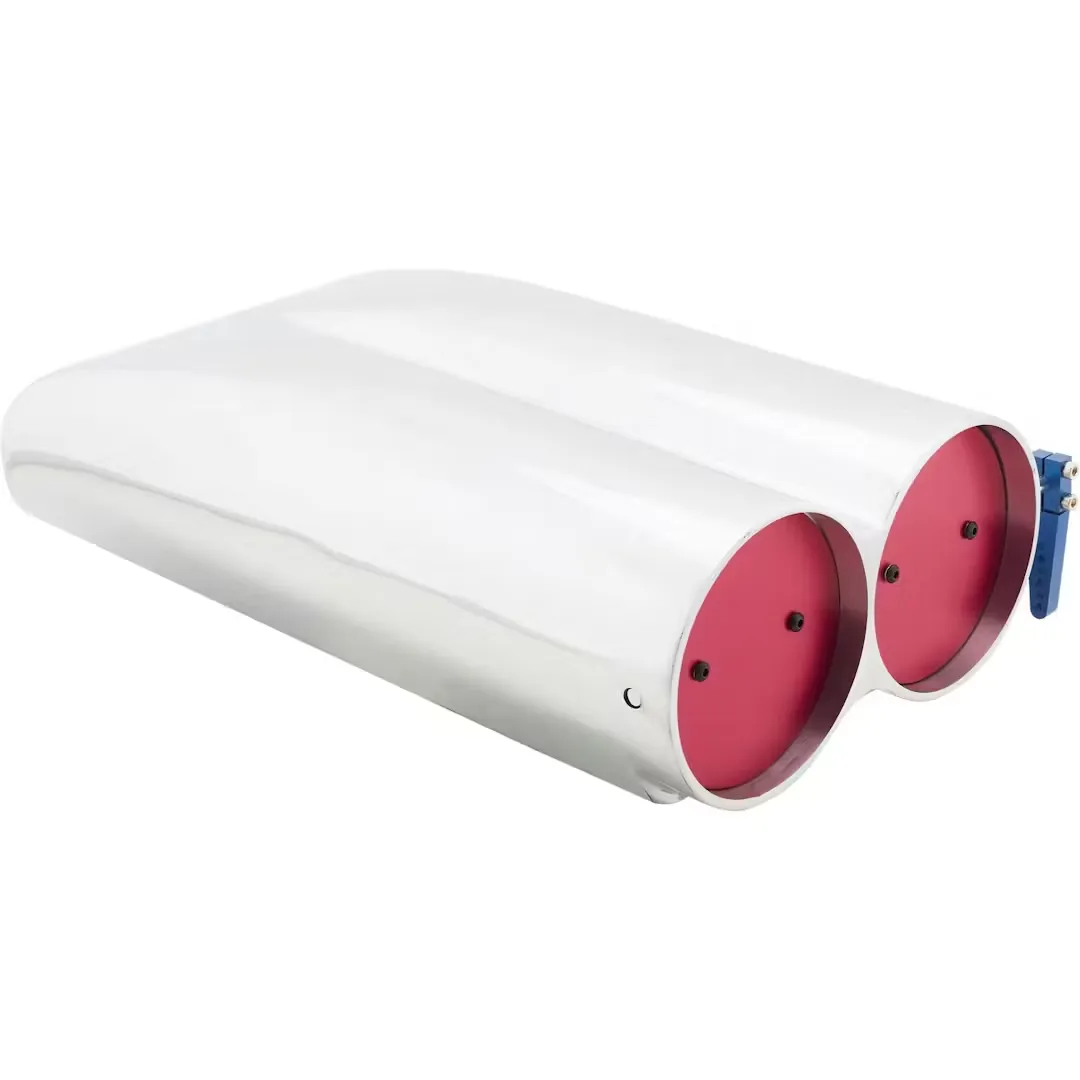

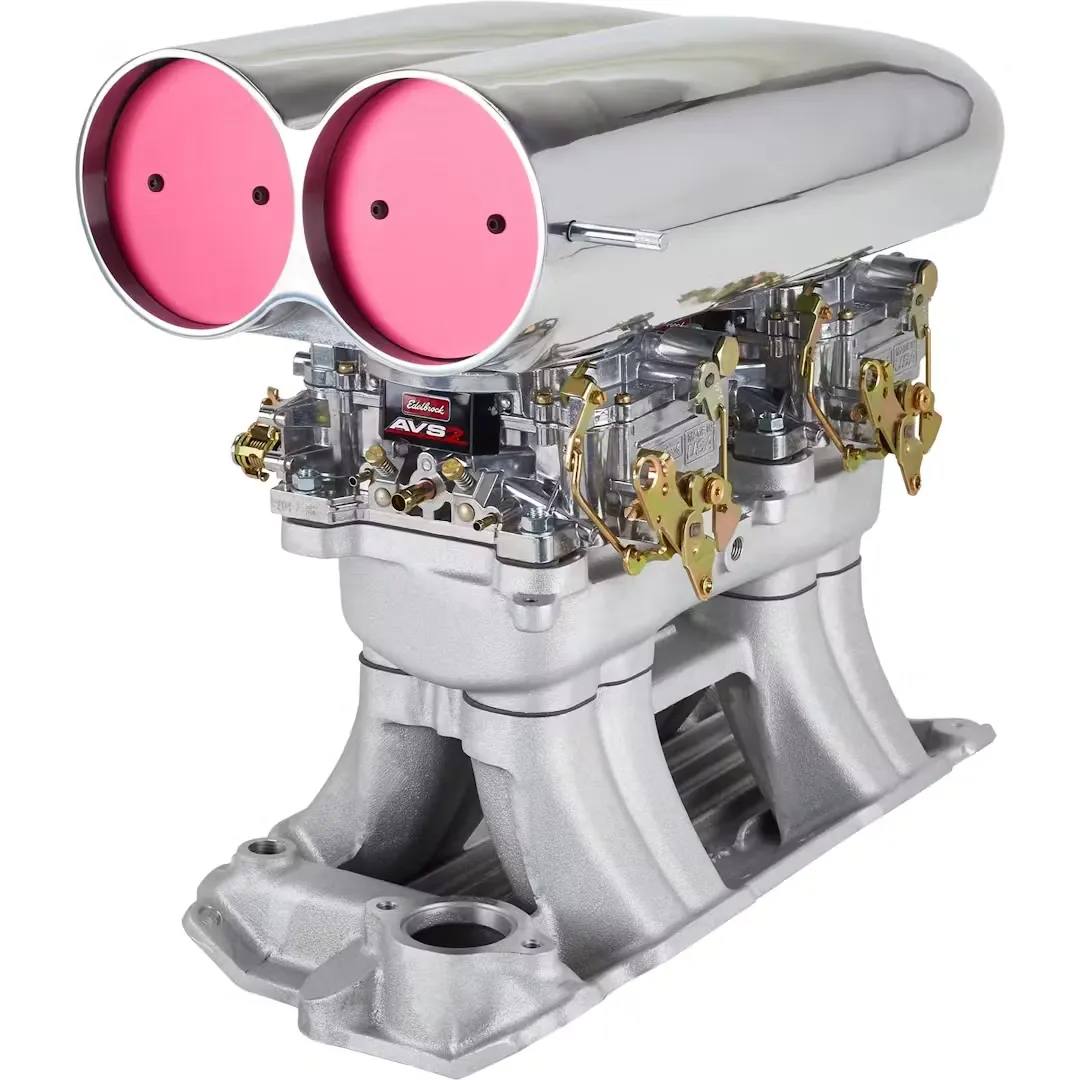

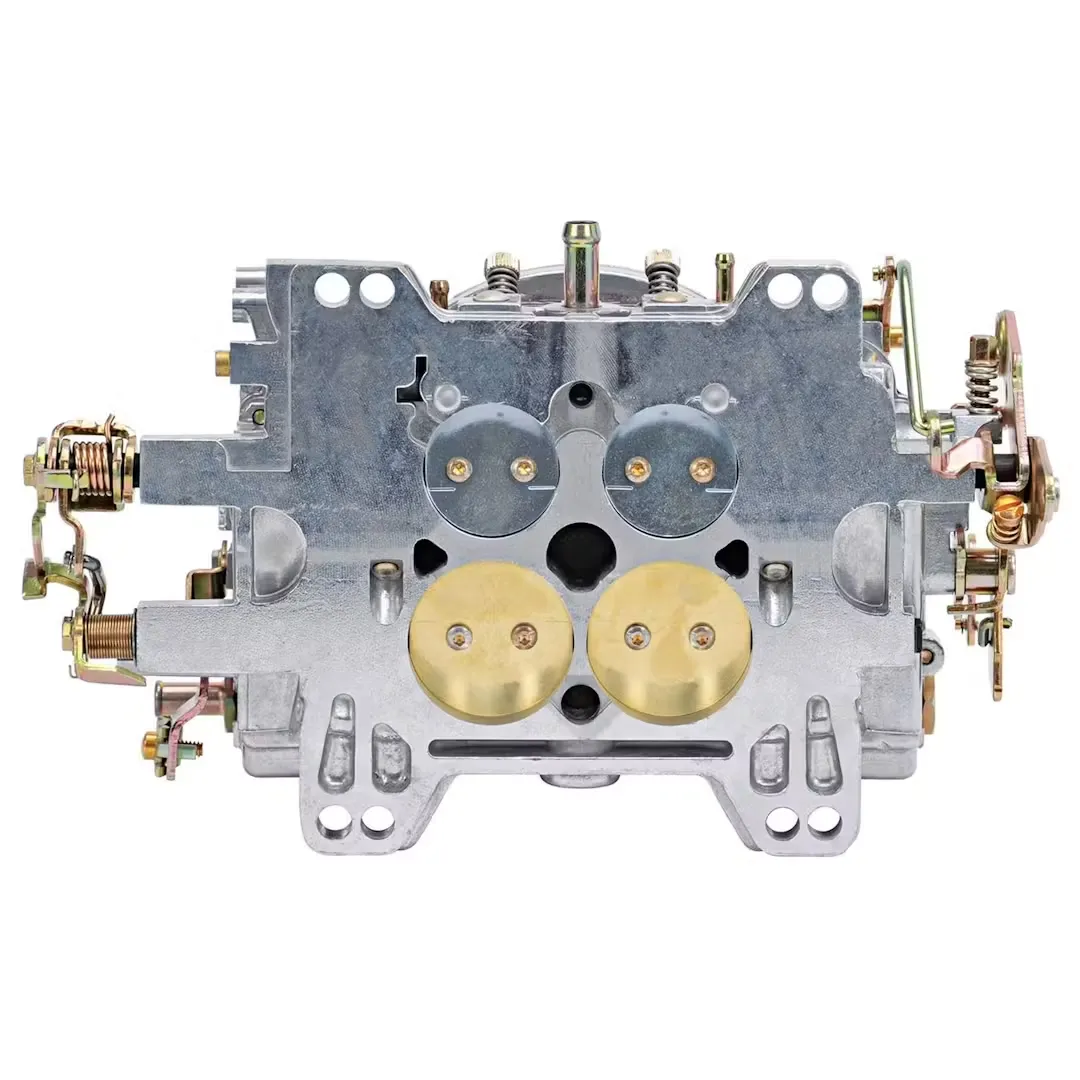

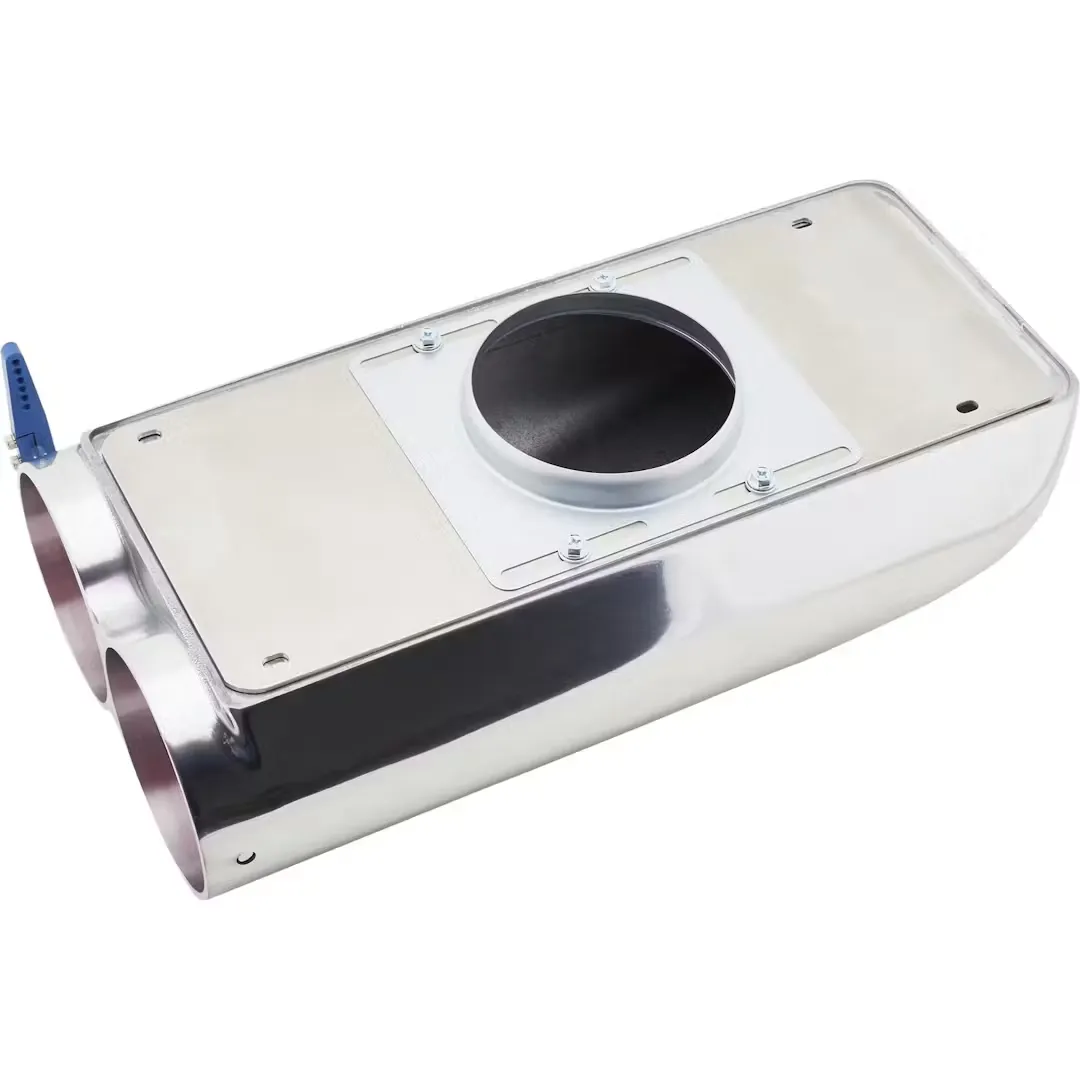

The Shotgun Bill’s Scoop® tunnel ram kit gives you two manual choke 500 cfm Edelbrock carbs, the famous Shotgun Bill’s Scoop® air intake scoop, carb linkage and Edelbrock street tunnel ram intake (3500-7500 rpm).
Designed for 1957-1986 302-327-350-400 c.i.d. small-block Chevy V8s operating below 7500 rpm where low-end torque is not a prime factor. Great for engines with slightly modified or aftermarket heads. Applicable to street machines, street rods, pro street and marine.
Will NOT work with 1987-up cast iron heads or HEI distributors. See Notes for important install notes.
| KEY SPECS | |
|---|---|
| MFG. Part # | 92519905 |
| Brand | Speedway Motors |
| Intake Manifold Type | Tunnel Ram |
| Carburetor Quantity | Two |
| Carburetor Barrels | 4-Barrel |
| CFM | 500 CFM |
| GENERAL | |
| Carburetor Flange Type | 4-Barrel Square Bore |
| RPM Range | 3,500-7,500 |
| Choke Type | Manual |
| Fuel Type | Gasoline |
| Intake Manifold Material | Aluminum |
| Intake Manifold Finish | Satin |
| Carburetor Finish | Natural |
| Air Cleaner Type | Shotgun Air Scoop |
| Air Cleaner Finish | Polished |
| Secondary Type | Air Valve |
| Fuel Inlet Type | Single |
| Mounted Height | 19″ |
| Port Height | 2.12″ |
| Port Width | 1.12″ |
| Gasket(s) Included | No |
| Sold in Quantity | Kit |
