Description

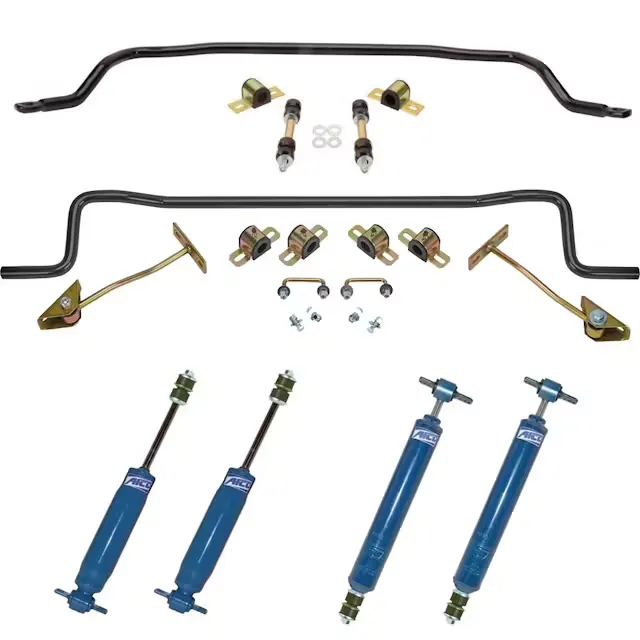

FRONT SWAY BAR

These front sway bar kits are designed as a performance replacement upgrade for your classic GM muscle car. They feature a 1-1/8″ diameter solid steel bar and come with all hardware needed for a successful installation.

• Achieve flatter cornering
• Complements rear sway bar to reduce understeer and gain more neutral handing
• Adds to cornering stability at speed
• Solid steel 1-1/8″ diameter bar
• Includes polyurethane bushings for increased responsiveness
• Black powder coated finish
• Corrosion resistant zinc plated hardware included

REAR SWAY BAR

These rear sway bars are designed as a performance replacement upgrade for your classic GM F-Body car.  They feature a 1″ diameter solid steel bar and come with all hardware needed for a successful installation.

• Achieve flatter cornering
• Complements front sway bar to reduce understeer and gain more neutral handing
• Adds to cornering stability at speed
• Solid steel 1″ diameter bar
• Includes polyurethane bushings for increased responsiveness
• Black powder coated finish
• Corrosion resistant zinc plated hardware include

FRONT SHOCKS

AFCO has been in the shock business for over 20 years and has incorporated their technological knowledge into this 10-Series street/strip/track shock.  This 80/20 front shock allows the front to lift and hold under acceleration, which transfers weight to the rear tires and improves traction.

Whatever your street stock choice, AFCO has the stock mount shock for you.  These 10-Series gas pressure shocks are built with the valving you need for racing, but are assembled in a “stock” configuration body to meet most track rules.  The split-valve shocks offer additional tuning capabilities over the standard valving.

Available Split Valves – Part # 1061022 is a “split valve – easy up” shock used on the front to promote weight transfer under acceleration.  This will enhance forward traction.

AFCO K-Series shocks are built to the highest quality standards and will deliver the control you need to keep your tires planted and your horsepower working for you.

• Compressed Length: 9.375″
• Extended Length: 13.375″

REAR SHOCKS

Whatever your street stock choice, AFCO has the stock mount shock for you.  These K-Series gas pressure shocks are built with the valving you need for racing, but are assembled in a “stock” configuration body to meet most track rules.  The split-valve shocks offer additional tuning capabilities over the standard valving.

Available Split Valves – Part # 1061034 is a split valve shock for rear applications.  Soft compression accents weight transfer.  In circle track applications, used on the left rear, these shocks tend to tighten corner exit handling.  Used on the right rear, these shocks tend to tighten corner entry handling.

AFCO K-Series shocks are built to the highest quality standards and will deliver the control you need to keep your tires planted and your horsepower working for you.

• 1970-81 Camaro/Firebird
• Compressed Length: 14.50″
• Extended Length: 22.50″

KEY SPECS
MFG. Part #	9101856
Brand	Speedway Motors
GENERAL
Sold in Quantity	Kit
