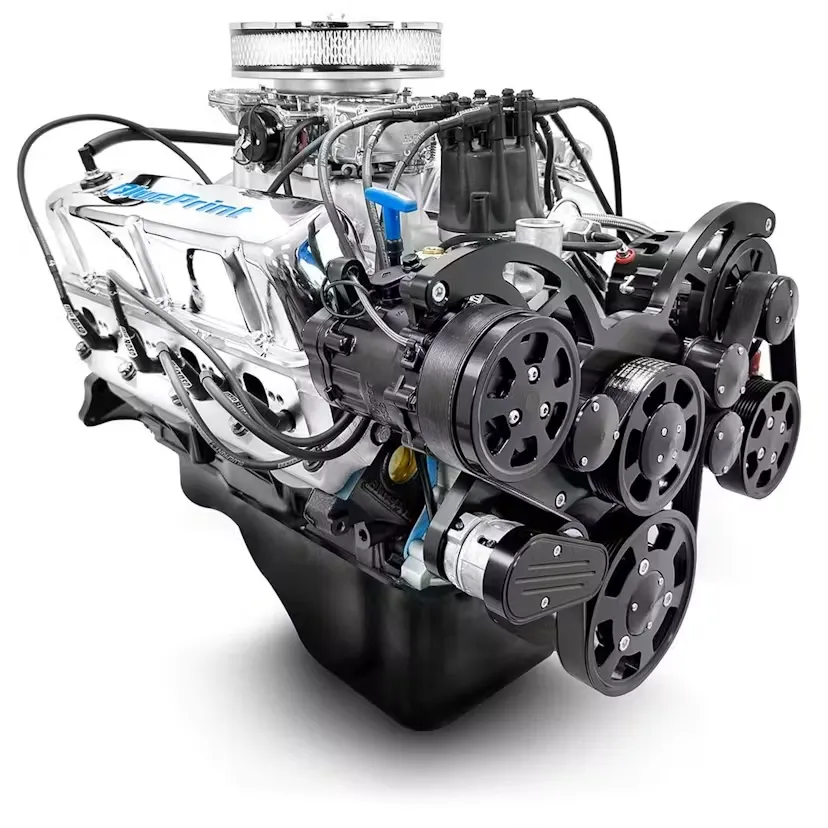

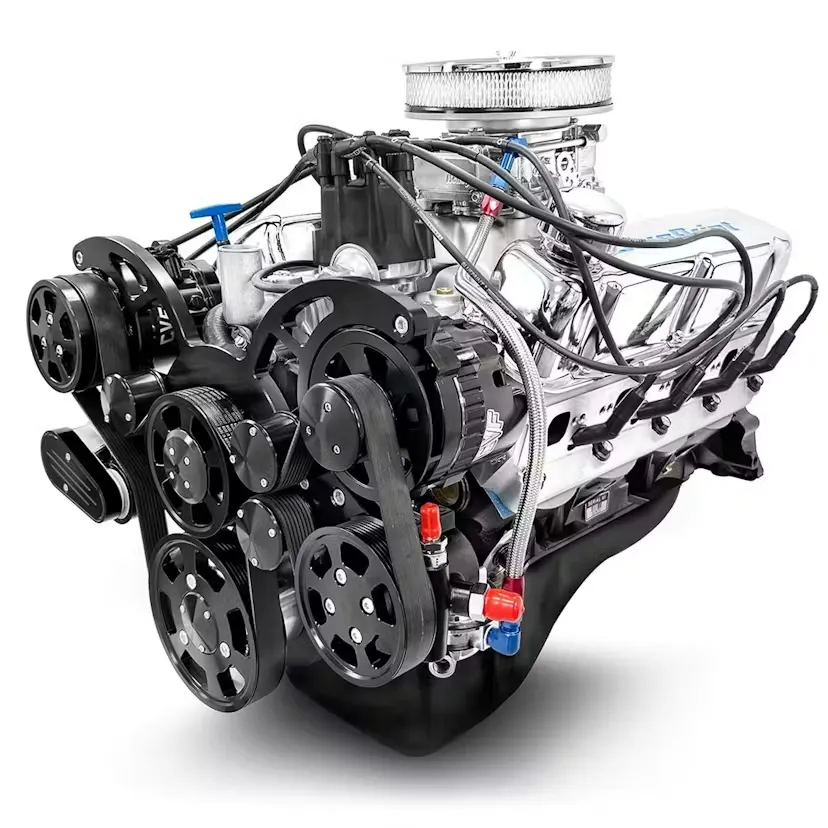

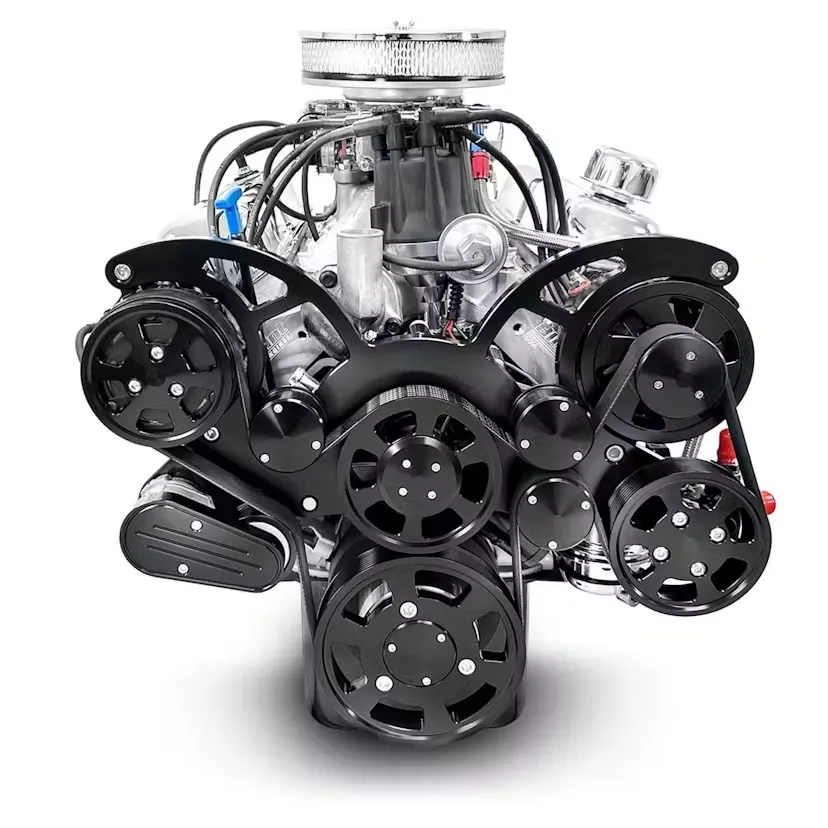

BluePrint BP3479CTCKB 342 Stroker Crate Engine, Base Dressed, FS
9,899.00 د.إ
- BluePrint Engines Small Block Ford 342 Stroker Crate Engine
- Carbureted Base Dressed Longblock with Aluminum Heads, Front Sump Pan and Roller Cam
- HP And Torque: 415 HP / 415 FT LBS
- Compression Ratio: 10.0:1
- Aluminum Heads
- Hydraulic Roller Cam
- Cast Steel Crank
- Forged Pistons
Did you like this product? Add to favorites now and follow the product.
+1 (616) 387-2903 sales@wahatalzafranautospareparts.com
Description
BluePrint Engines BP3479CTCKB Details
BLOCK:
New standard bore stroker style block
Square and parallel decked
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness
2-Bolt Main
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
ROTATING ASSEMBLY:
New BluePrint Cast steel crankshaft
3.400″ Stroke
Forged I-beam 5.400″ connecting rods
Forged pistons
28oz External balance
CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads -HP9008
60cc chamber
2.02″ intake/1.60″ exhaust valves
190cc intake/65cc exhaust runners
CAM SPECS:
Cam Type: Roller
.543 Intake .554 Exhaust
218 Intake / 226 Exhaust duration
@ .050 – 112 degree lobe separation
IGNITION TIMING:
34 Degrees Total at 3500 RPM
ALSO INCLUDES:
Dual plane, satin aluminum intake manifold
600cfm carburetor
Distributor
Valve covers
Painted front sump oil oil pan
Dyno test results shipped with engine
WARRANTY:
30 month / 50,000 mile
BluePrint Engines BP3479CTCKB Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | BP3479CTCKB |
| Brand | BluePrint Engines |
| Crate Engine Type | Deluxe Crate Engine |
| Engine Displacement | 347 cu. in. |
| Horsepower | 415 horsepower |
| Compression Ratio | 10.0:1 |
| Torque | 415 ft./lbs. |
| Camshaft Type | Hydraulic Roller |
| Cylinder Head Material | Aluminum |
| Piston Material | Forged Aluminum |
| Crankshaft Material | Cast Steel |
| Combustion Chamber Volume | 60cc |
| Camshaft Duration (.050 in) | 218° intake / 226° exhaust |
| Camshaft Lift (in) | .543 intake / .554 exhaust |
| Carburetor Included | Yes |
| Intake Manifold Included | Yes |
| Distributor Included | Yes |
| Connecting Rod Material | Forged Steel |
| Valve Covers Included | Yes |
| Engine Balance | External |
| Cylinder Heads Included | Yes |
| Throttle Body Included | No |
| Oil Pan Included | Yes |
| Timing Cover Included | Yes |
| Water Pump Included | Yes |
| Harmonic Balancer Included | Yes |
| Air Cleaner Included | Yes |
| Spark Plugs Included | Yes |
| Spark Plug Wires Included | Yes |
| Recommended Fuel | Premium |
